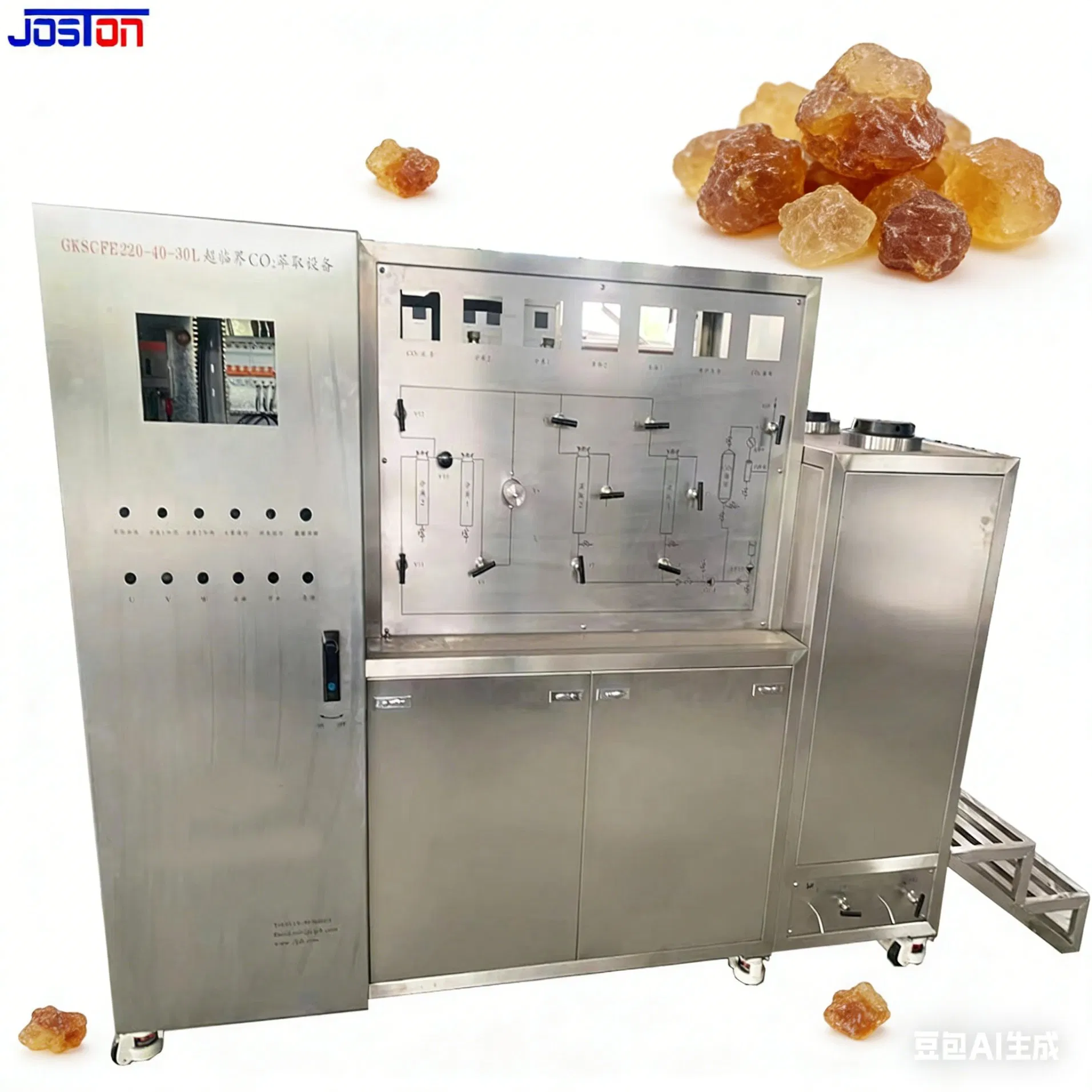

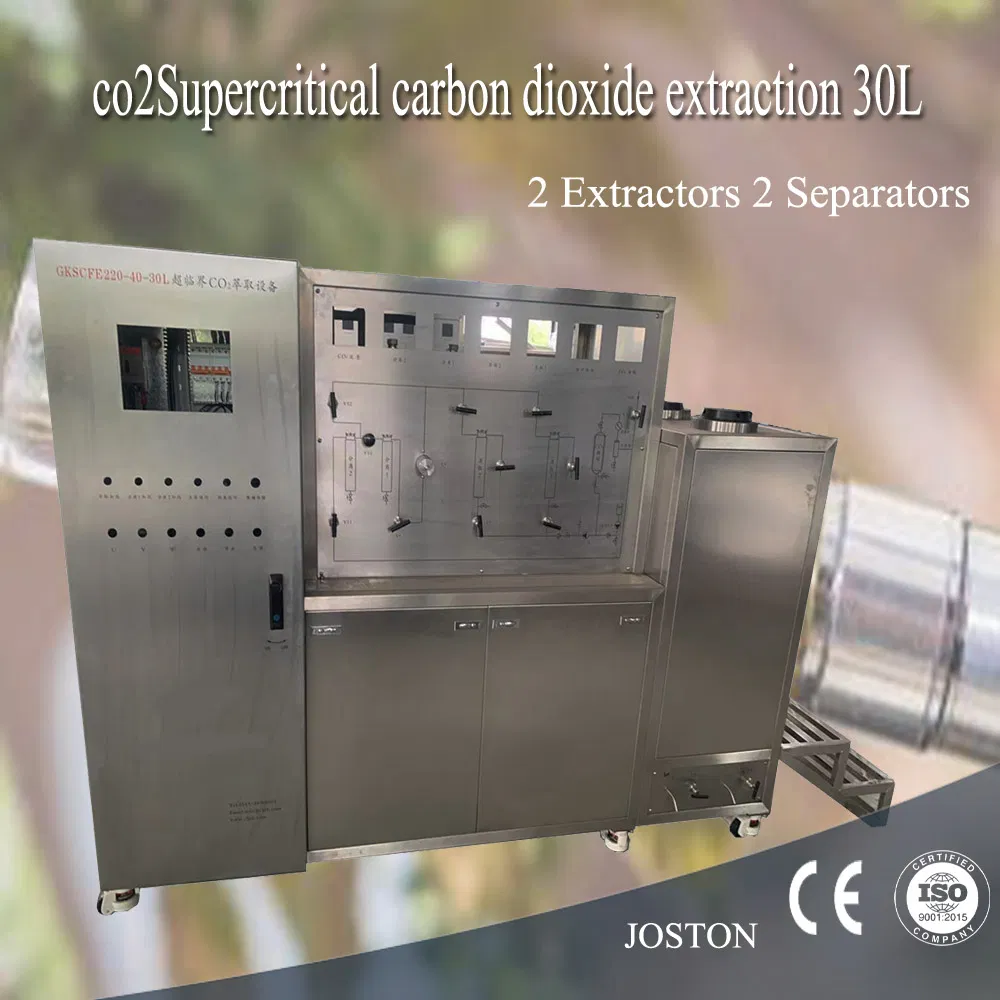

Joston High-Pressure Supercritical CO2 Extractor for Difficult Materials (Frankincense, Myrrh)

Customization:	Available
After-sales Service:	Online Support,video Technical Support
Application:	Cosmetic Industry, Essential Oil Industry, Food Safety, Herbal Industry, Nutraceutical Industry, Pharmaceutical Industry, Biotechnology

Basic Info.

Capacity

3lbs-18000lbs

Certification

CE, FDA, GMP, ISO

Condition

New

Customized

Extraction Method

Carbon Dioxide CO2

Machine Type

Supercritical CO2 Extraction Machine

Material

Stainless Steel, 304/316L Stainless Steel

Pressure Control

High Pressure

Temperature Control

50-70

Voltage

208,220,380,415,440V

Warranty

1 year

Extraction Type

CO2 Fluid

After-Sales Service Provided

1 Year

Report

Machinery Test Report

New Type

Extracting Concentrating Machine

Solvent

Food Grade CO2

Transport Package

Wooden Case Package

Specification

500mL-700L

Production Capacity

30 Sets/Month

Product Description

Industrial-scale supercritical CO2 extraction machines

Supercritical fluid extraction with CO2 is a sustainable process that can separate and extract natural chemical components from plants, seeds and other biomass. It is a versatile, selective, non-toxic and non-destructive extraction method that avoids loss of flavor and active components from the raw material. The process is eco-friendly as the CO2 we use is recovered as a by-product from other industrial processes (biogenic CO2), and no toxic waste streams originate from the extraction process.

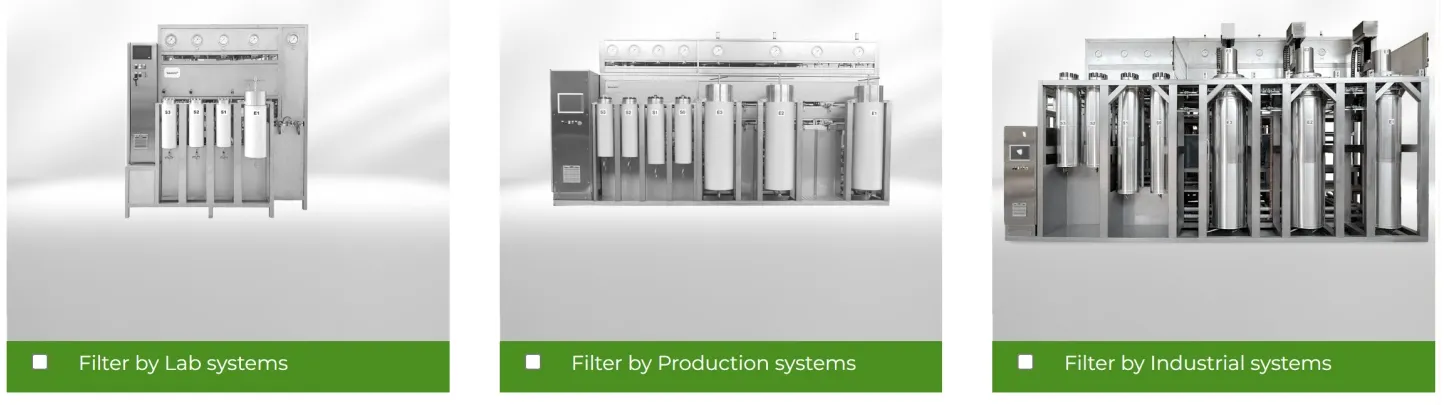

It is divided into three sizes: lab use, production systems and industrial systems.

High-Pressure Supercritical CO2 Extractor for Difficult Materials (Frankincense, Myrrh)

Specification

Applications

Pharmaceuticals: Extraction of active pharmaceutical ingredients, APIs as Ginkgo biloba leaves, Ginseng.
Foods: Extraction of natural products as Coffee Decaffeination, Plant essential oils, etc.
Food additive production: Natural pigments like capsanthin, Antioxidants, Tea polyphenols.
Cosmetics Industry: Extraction of natural active extracts.
Other industries

Characteristics of Industrial System

Extractor kettles: 1 to 4 is the common type. Size, qty and pressure can be customized.
Top lifting System: Adopted for extraction kettle sizes larger than 50L.
High pressure: 35-45Mpa.
MOC: SS304, 316L.
Safety valve: Matched as per the Maximum working pressure for CO2 pump, extraction kettles, separation kettles, and CO2 storage tank.
Control System: Manual / PLC (Siemens brand) with touchscreen HMI for temperature, pressure control and regulation.
Certificate: PED, CE, ASME inspection certificate for extraction and separation kettles, ASME U Stamp.

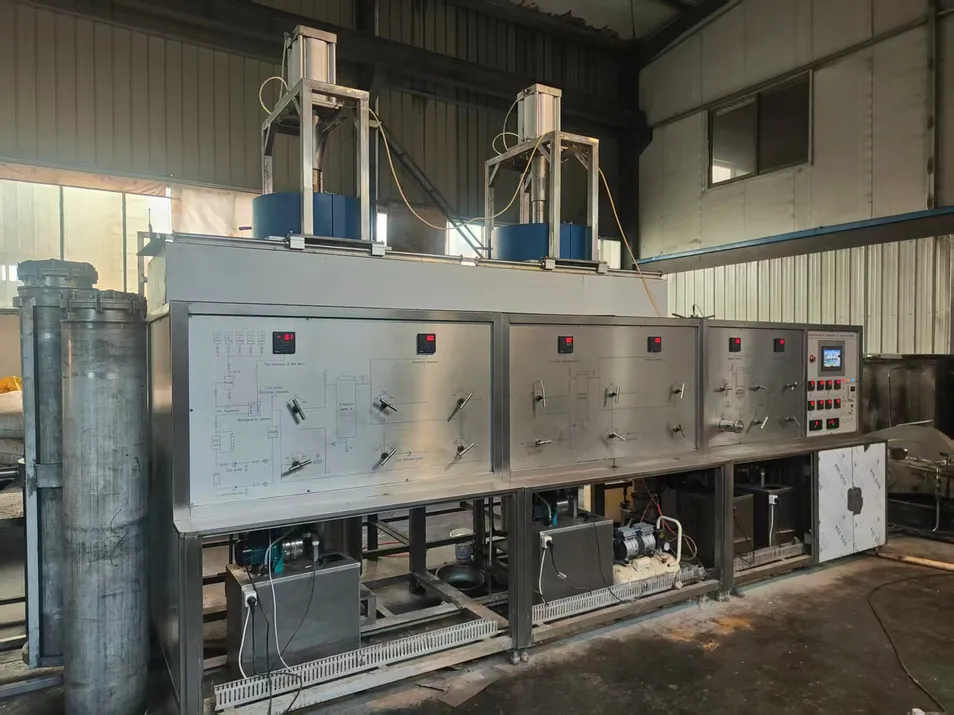

High-Pressure Supercritical CO2 Extractor Details

Supercritical CO2 Extractor Processing View

Supercritical CO2 Extractor Structural Layout

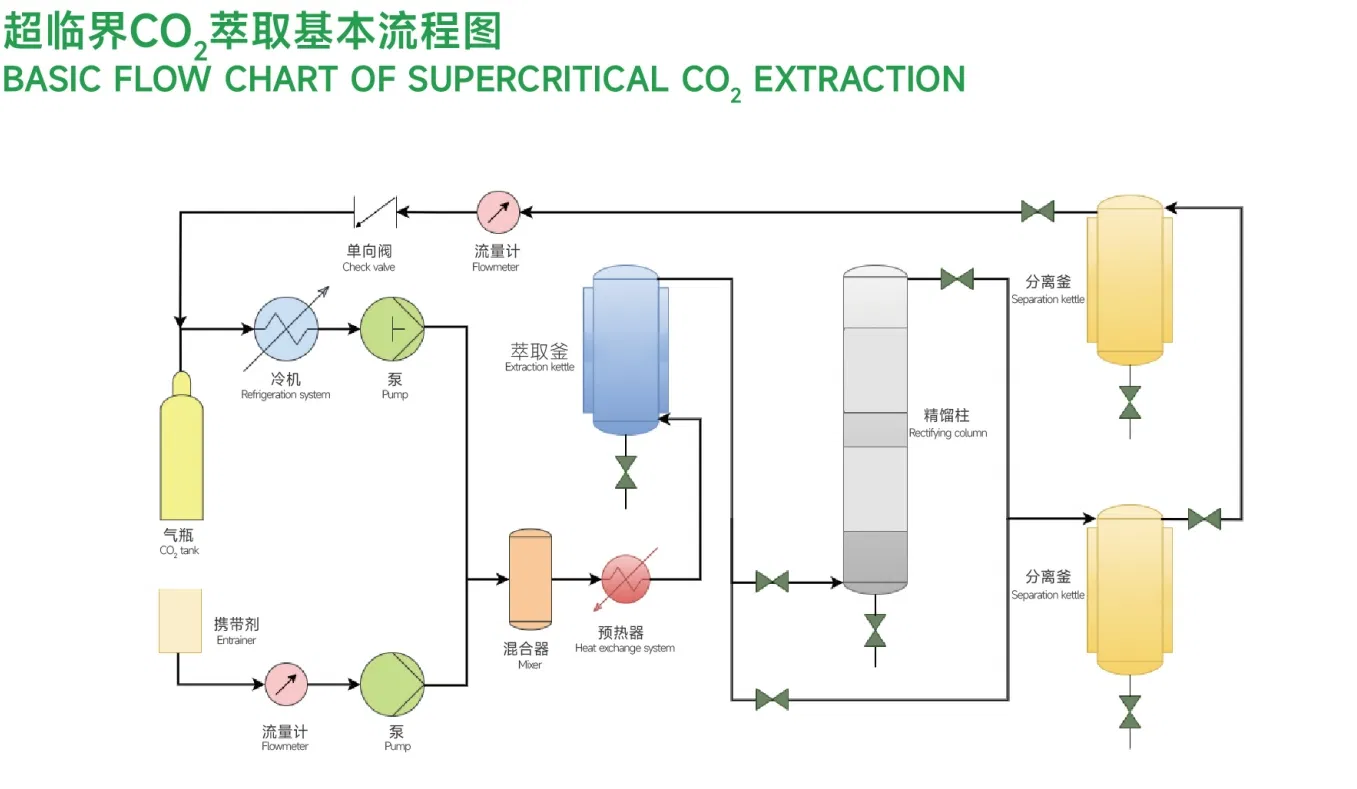

Flow Display

Detailed CAD drawings and dimensional diagrams are available after contract. Our engineering team can provide tailored designs to meet specific project requirements.

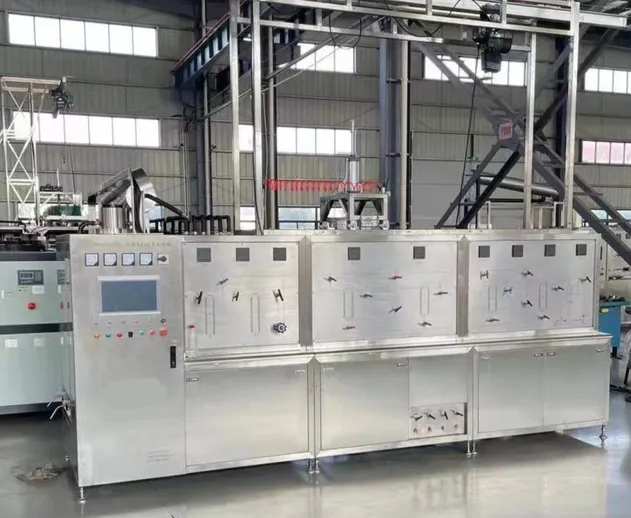

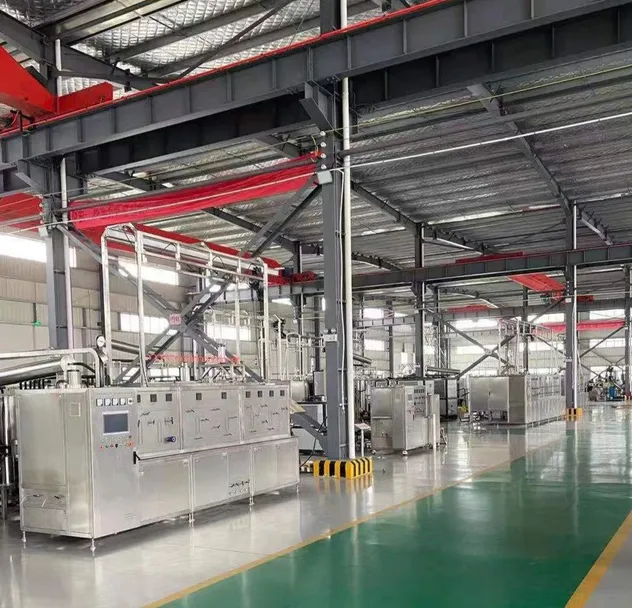

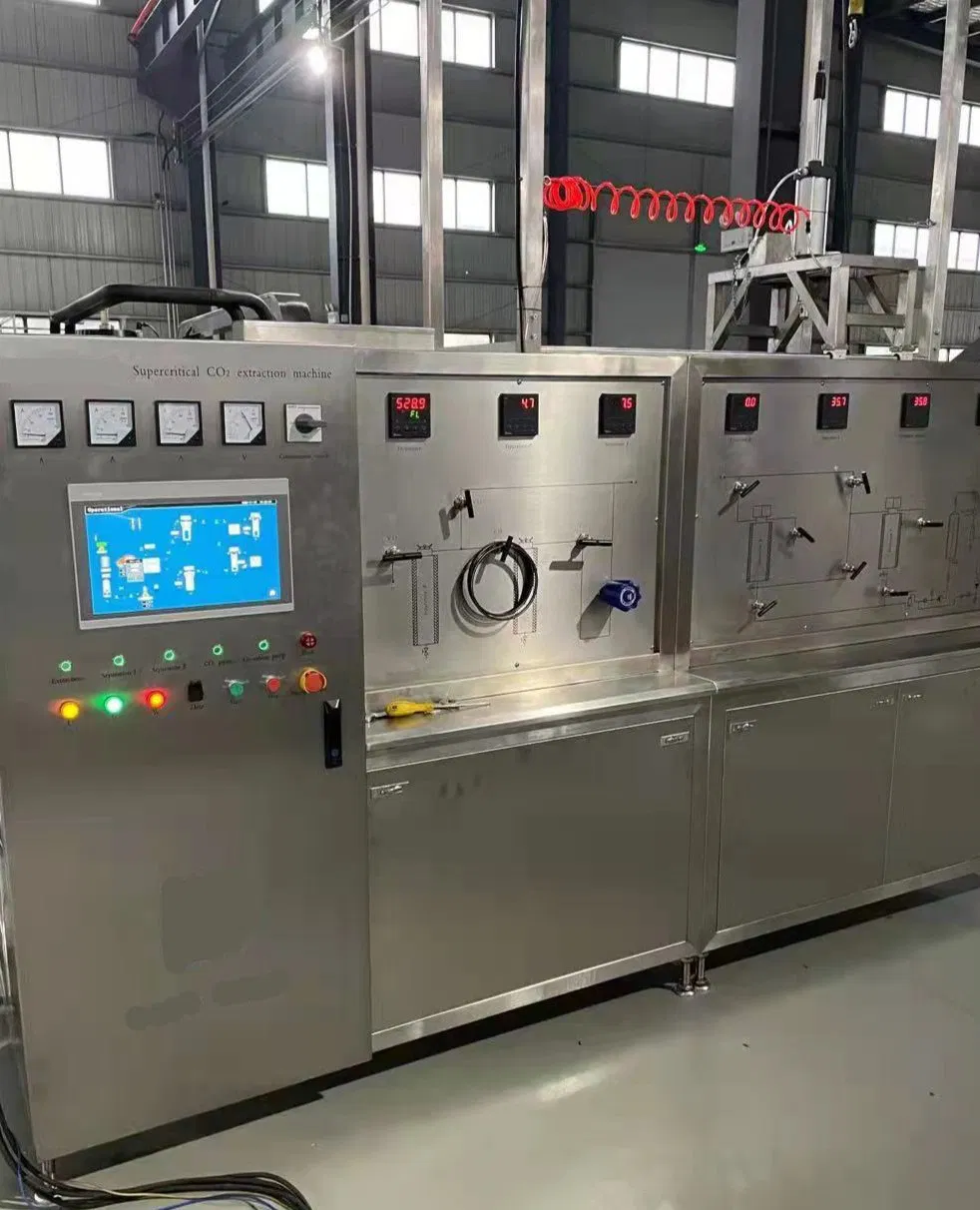

Installed Working Site

Technical Specifications

(Custom configurations available upon request.)

S/N	Model	Specification	Max working pressure	Capacity
11	50LX2	2 Extractor 2 Separators	350bar	400lbs-500lbs
12	50LX4	4 Extractor 2 Separators	320bar	800lbs-1000lbs
13	50LX6	6 Extractor 2 Separators	320bar	1200lbs-1600lbs
14	150LX2	2 Extractor 2 Separators	320bar	1200lbs-1700lbs
15	150LX4	4 Extractor 2 Separators	320bar	2400lbs-3400lbs
16	100LX2	2 Extractor 2 Separators	320bar	800lbs-1200lbs
17	200LX2	2 Extractor 2 Separators	320bar	1600lbs-2400lbs
18	200LX4	4 Extractor 2 Separators	320bar	3600lbs-4800lbs
18 (2)	700LX3	3 Extractor 2 Separators	320bar	8800lbs-12000lbs
19	1000LX3	3 Extractor 2 Separators	320bar	10000lbs-18000lbs

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

We are a leading manufacturer of stainless steel equipments with over 20 years of expertise. Certified with ISO 9001, CE, and PED, we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.

Certifications

FAQ

How is the equipment quality controlled?

We have a qualified expert team inspecting every production step. All machines are thoroughly tested in our plant before shipment to ensure stable performance.

How long is the warranty?

We provide a 1-year warranty for the machine operation, and we offer lifelong services and technical support for all our machinery.

What kind of payment terms are accepted?

We accept T/T, L/C, D/P, Western Union, and other flexible payment options based on mutual agreement.

Do you supply overseas equipment installation?

Yes, if required, we can send our engineering experts to your site to assist with system installation, commissioning, and staff training.

What services do you offer before placing an order?

We evaluate your specific user requirements, construct customized design drawings, and provide matching details and quotations prior to final agreement on terms.

How can we track our order production status?

We assign a dedicated project coordinator to provide weekly photos or videos of the manufacturing process. Once complete, we support both remote media checking and Factory Acceptance Testing (FAT) at our workshop.
