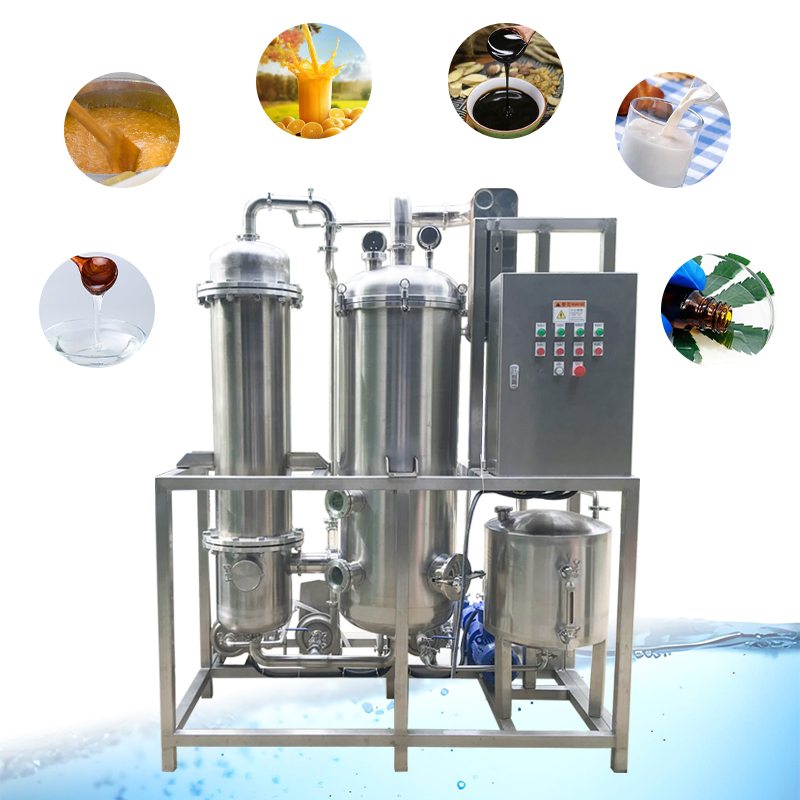

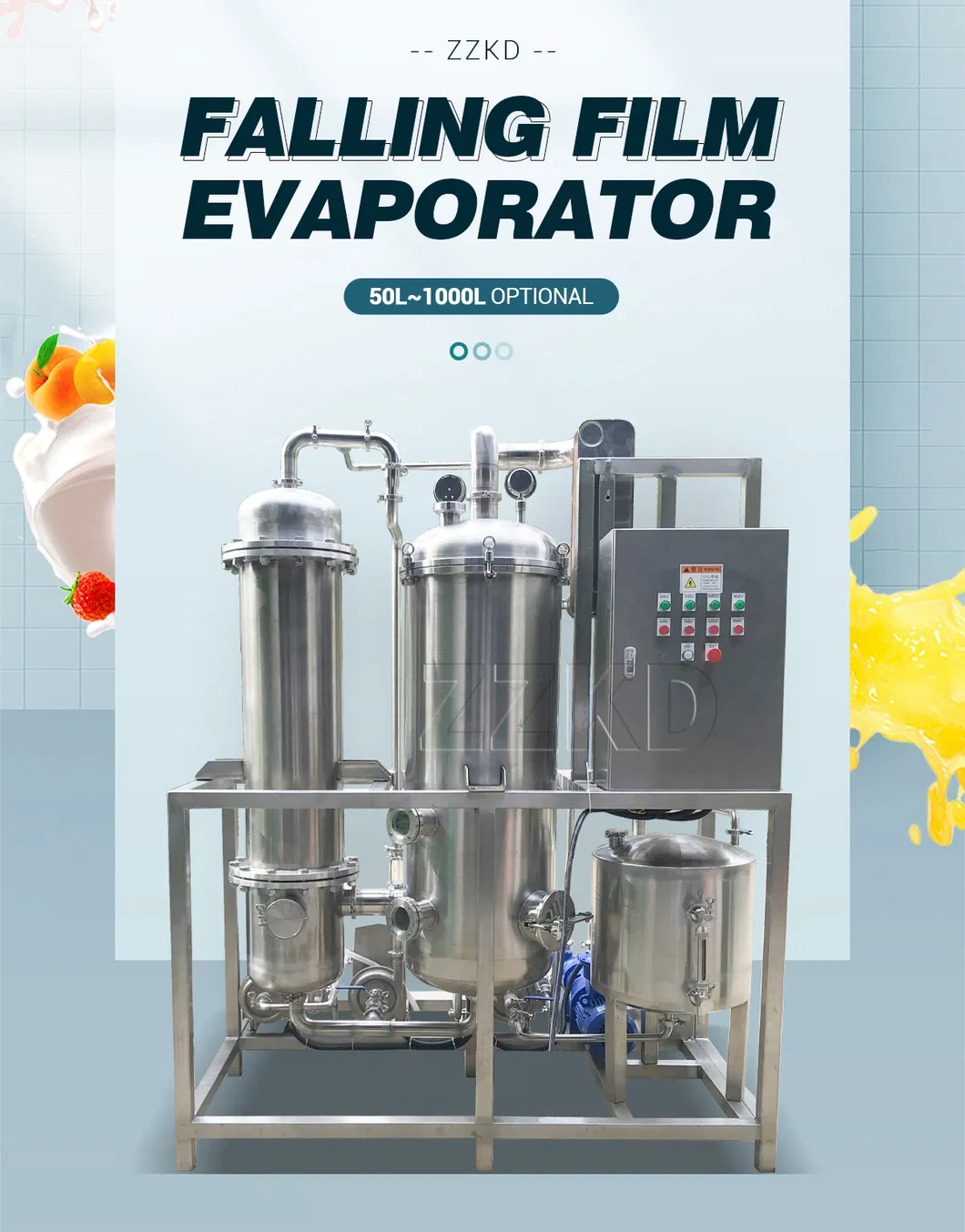

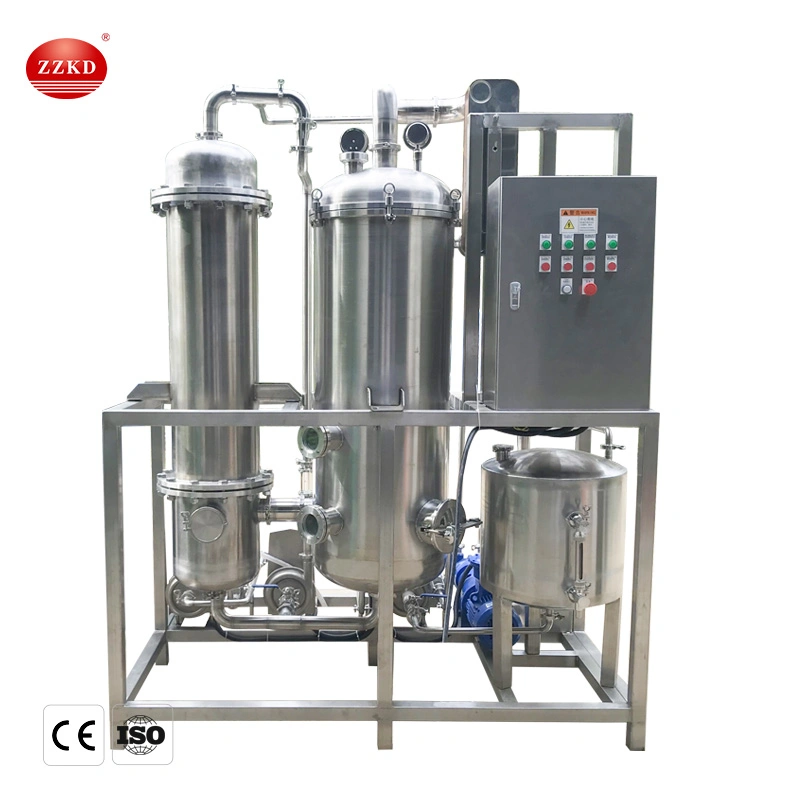

Falling Film Evaporator is ideal for botanical oil separation and ethanol alcohol recovery from your extracted biomass tincture. The system maintains a high evaporation rate, which significantly increases the throughput of crude oil production, eliminating the need for multiple large rotary evaporator systems. It is widely used in the concentration of chemical, ketchup, glucose, starch sugar, oligosaccharide, caramel, sorbitol, fresh milk, fruit juice, vitamin C, maltodextrin, pharmaceutical and other aqueous solutions. Besides, it is also widely used in the waste liquid treatment of monosodium glutamate, alcohol, fish powder and other fields.

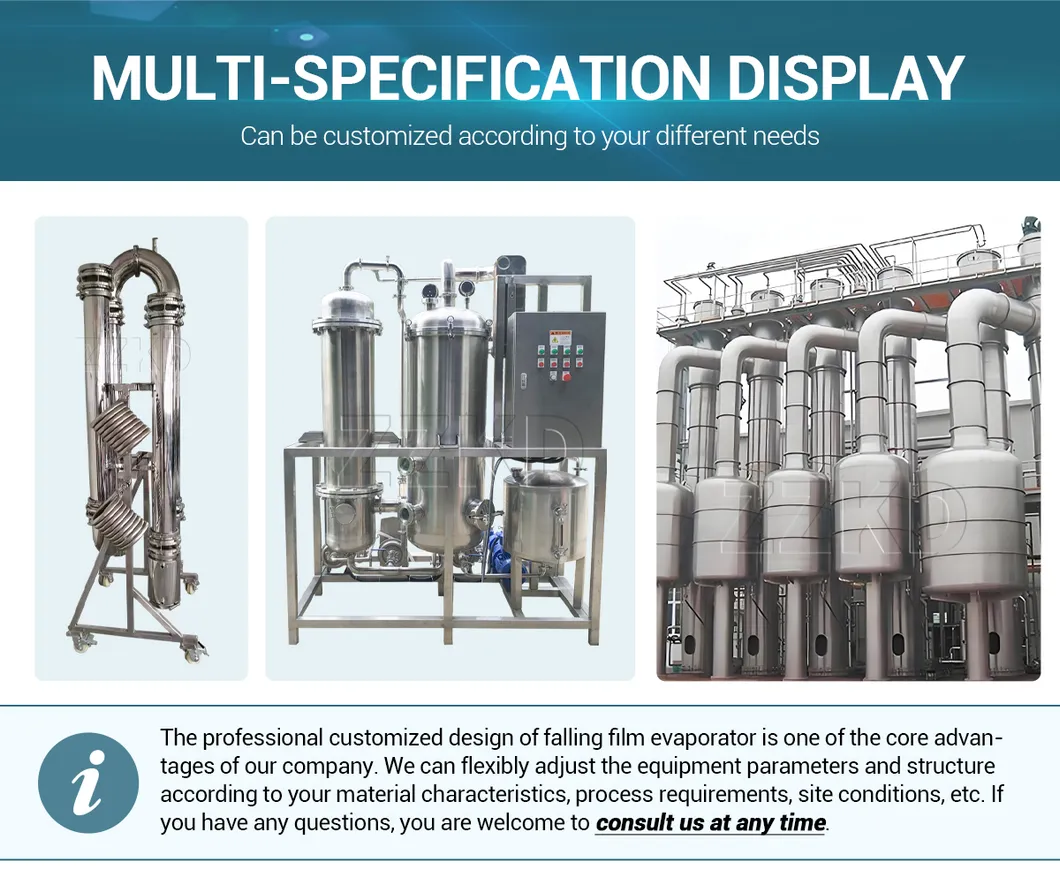

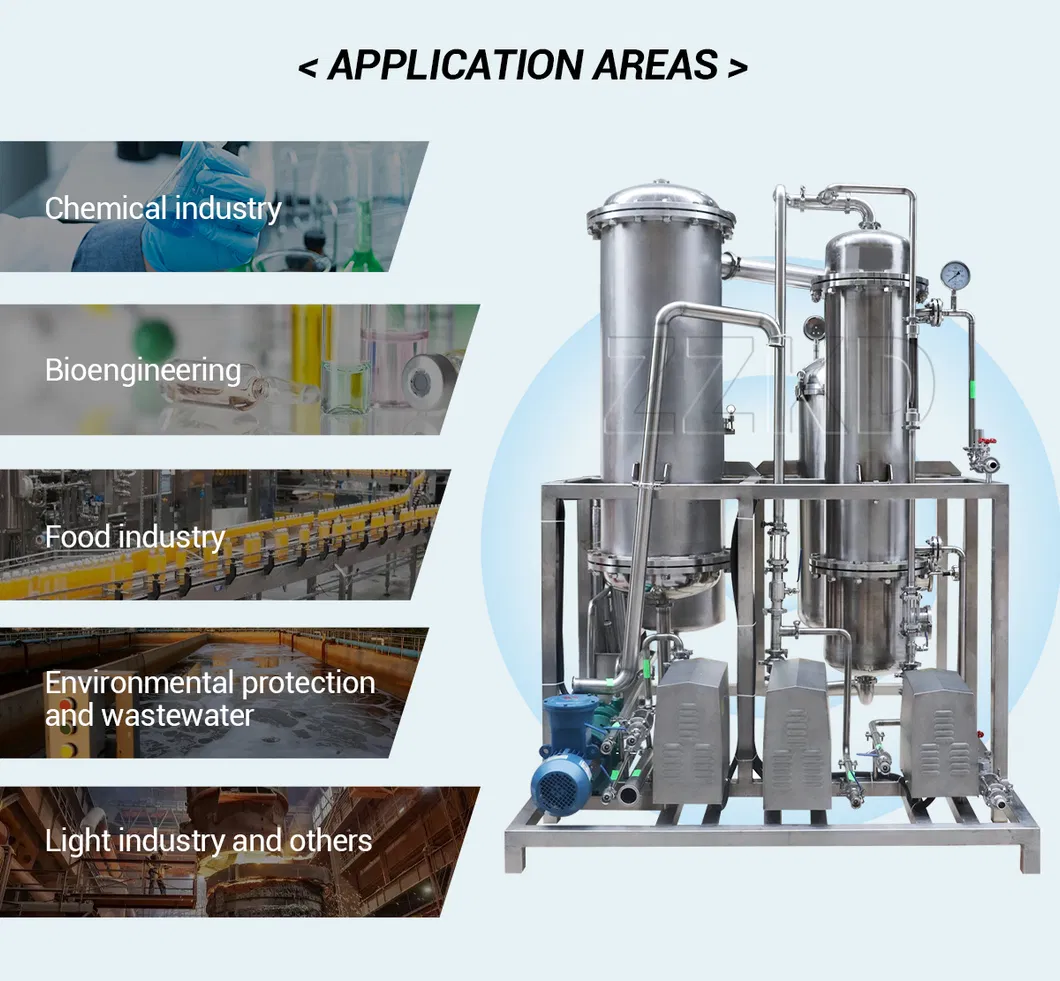

The equipment is continuously operated under vacuum and low temperature conditions, with high evaporation capacity, energy saving and consumption reduction, low operating cost, and it can maintain the original color, aroma, taste and ingredients of the processed materials to the maximum extent. It is widely used in many industries such as food, medicine, food deep processing, beverage, light industry, environmental protection, chemical industry and other fields. The evaporator can be designed into different process flow according to the characteristics of different materials to be processed, and can also be equipped with automatic control system according to your needs.

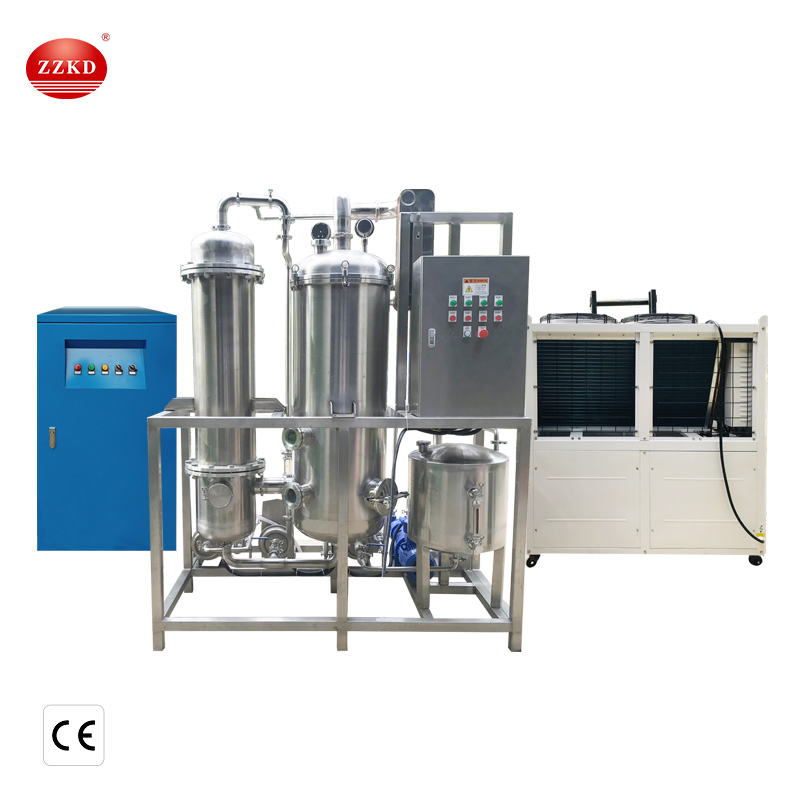

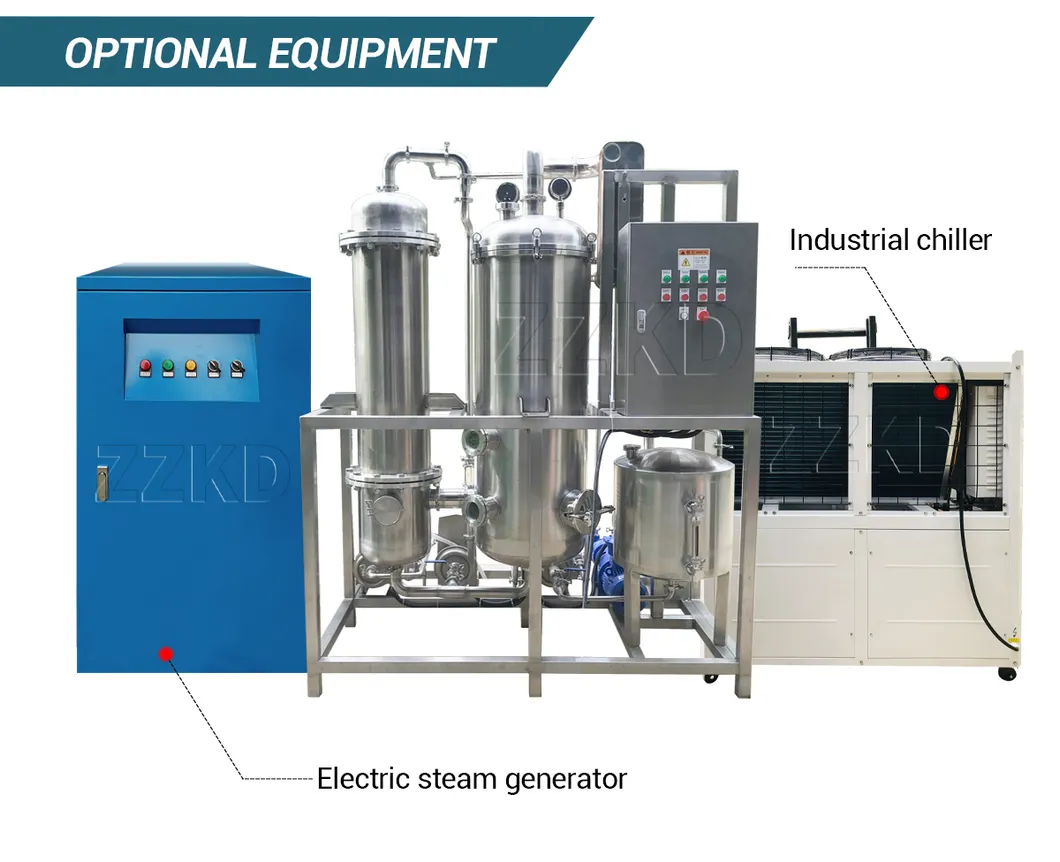

Increase processing capacity for high-quality output and efficiently recover alcohol with less time and labor. The FFE Series separates 90-95% of alcohol in one pass (depending on SOP). Heating and Cooling are integral to the process. With the right heaters and chillers we are able to manipulate the process to give our customers the recovery rates they need.

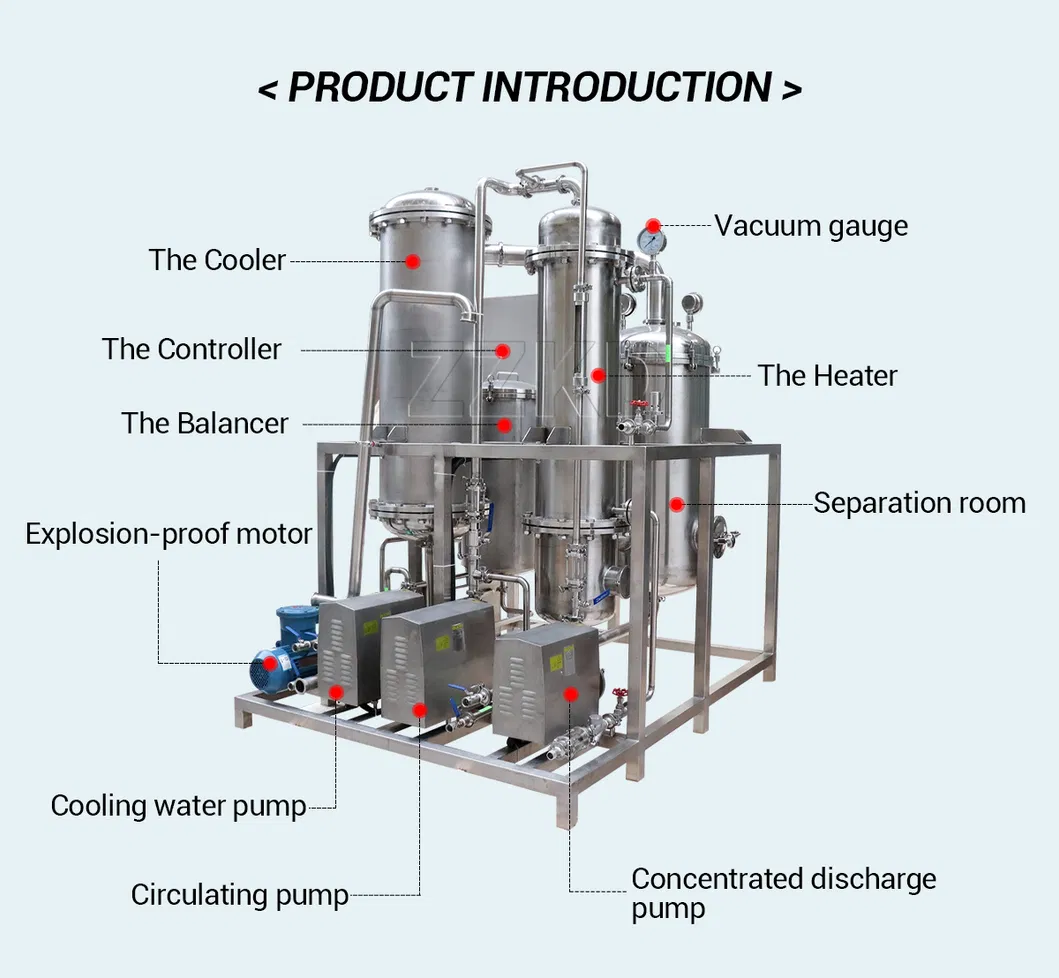

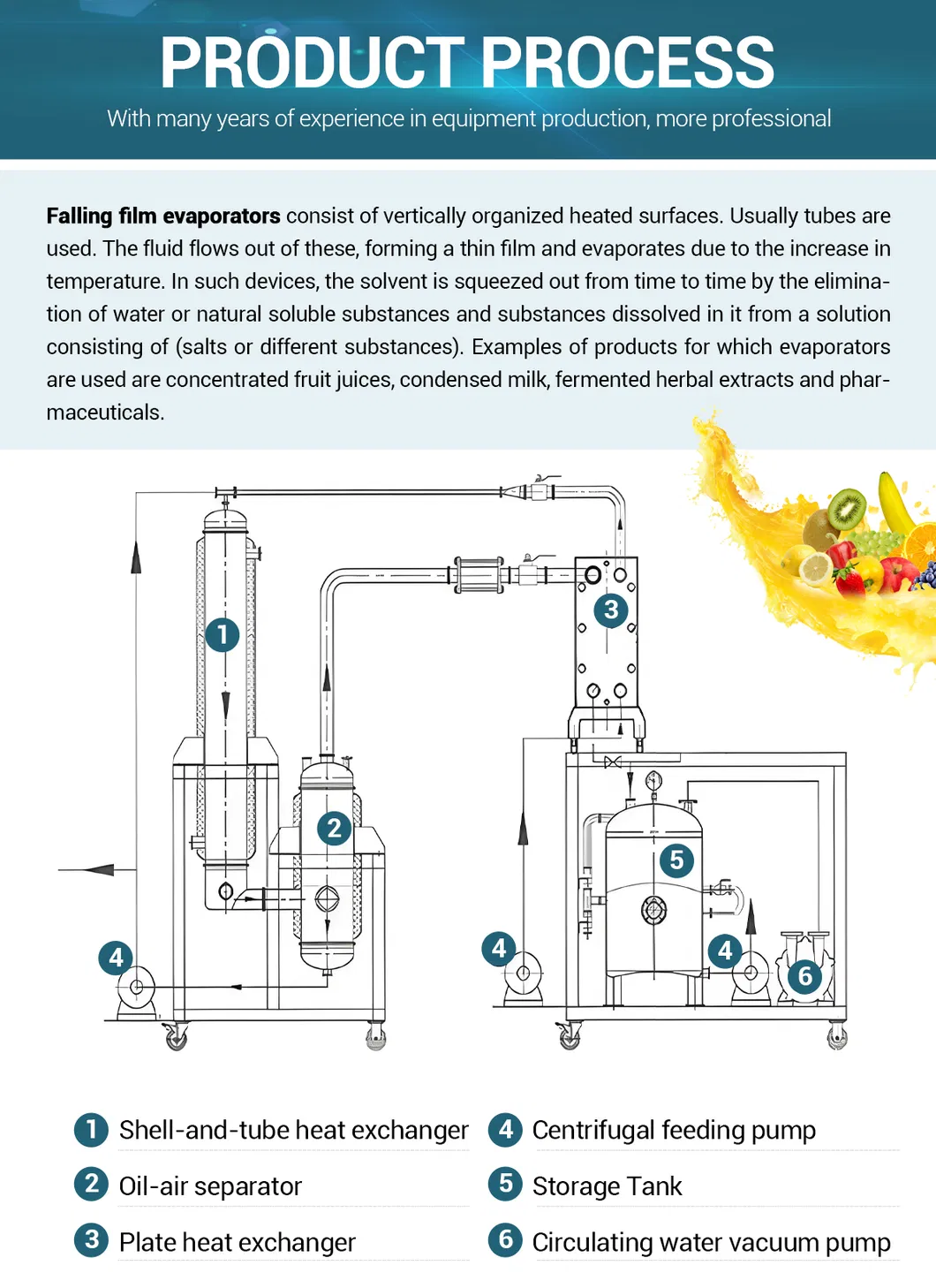

This equipment belongs to liquid film concentration equipment, which has high heat transfer rate and short heating time. It applies to chemical, liquid medicine, juice, and dairy production. The theory is that the feed liquid is added in the middle of the evaporation chamber. Under the action of vacuum and gravity, the accelerating pressure head of the liquid is smaller than that of the rising film type, and the boiling point is also smaller. The temperature difference between the electric heating and the feed liquid is large, so the heat transfer effect is better. The steam enters the evaporative separation chamber for separation. The secondary steam is discharged from the top of the chamber and the concentrate is extracted from the bottom.
| MODEL | FFE-50L | FFE-100L | FFE-200L | FFE-300L | FFE-600L | FFE-1000L |
|---|---|---|---|---|---|---|
| Falling film heater (m²) | 3 | 4.5 | 6 | 7.5 | 18 | 30 |
| Evaporative separator (L) | 60 | 120 | 200 | 200 | 600 | 1200 |
| Steam water separator (mm) | 200 | 300 | 300 | 300 | 300 | 400 |
| Condenser (m²) | 6 | 12 | 15 | 18.6 | 45 | 60 |
| Recycling receiver (L) | 50 | 70 | 70 | 100 | 250 | 500 |
| Material balance tank (L) | 100 | 100 | 100 | 100 | 300 | 500 |
| Inlet pump (L/H) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Discharge pump (L/H) | 1000 | 1000 | 5000 | 5000 | 5000 | 5000 |
Packaging:
- Inner protection using clean cartons, outer layout packed in sturdy, non-fumigation standard wooden cases.
- Both neutral and customized packaging options are fully supported.
Shipping:
- Delivery can be arranged through international express services (DHL, TNT, EMS, FedEx, etc.) matching your specific schedule and budget.
- Clients may also specify their own designated shipping agent.
| Shipping Method | Special Note |
|---|---|
| Express | Door to door service, highly convenient, handles customs clearance automatically. |
| By Air | Airport-to-airport transport, requiring local customs clearance and collection at destination airport. Local agents can be designated. |
| By Sea | Port-to-port maritime shipping, requiring standard import clearance and collection at your local seaport. Ideal for larger volume shipments. |
