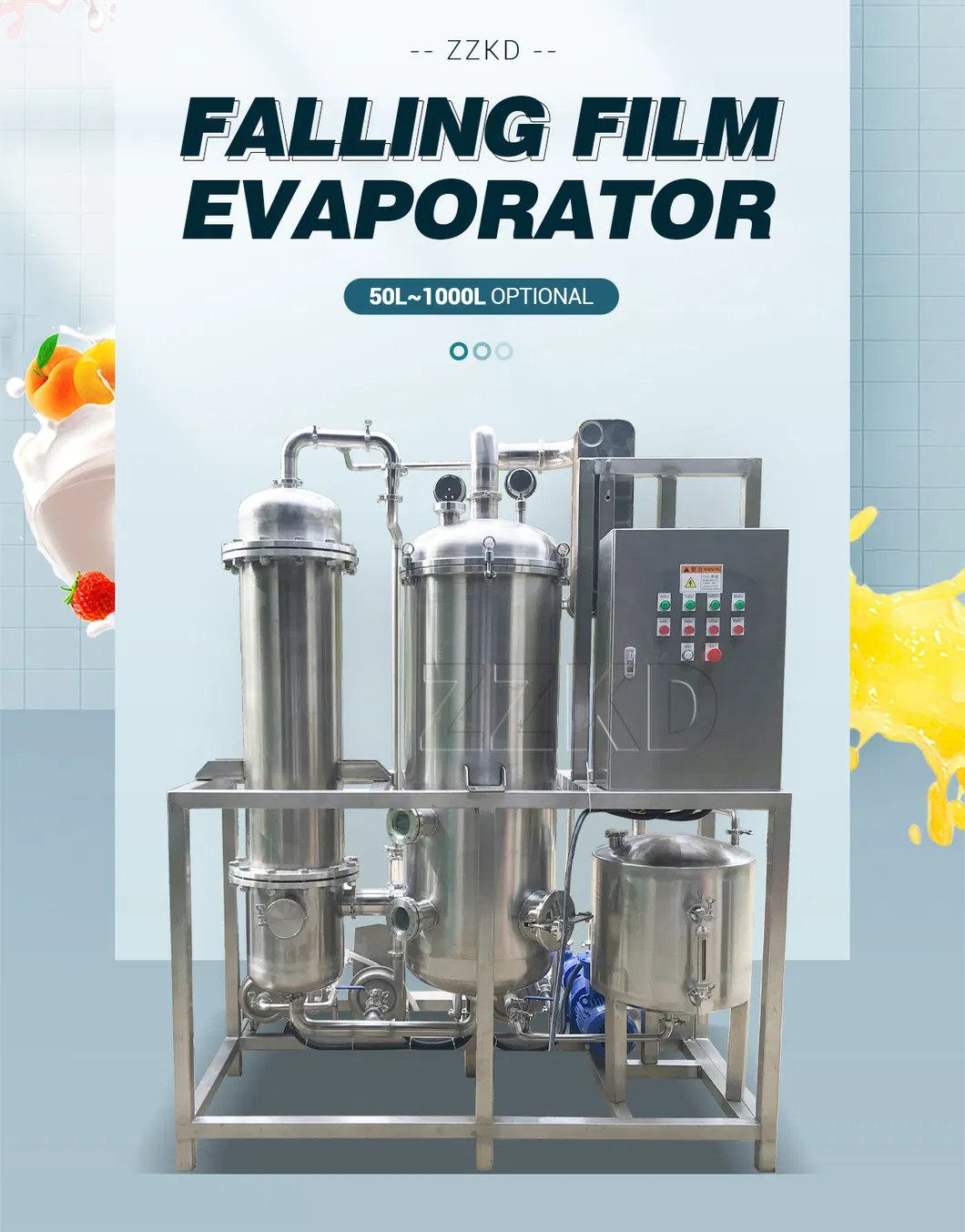

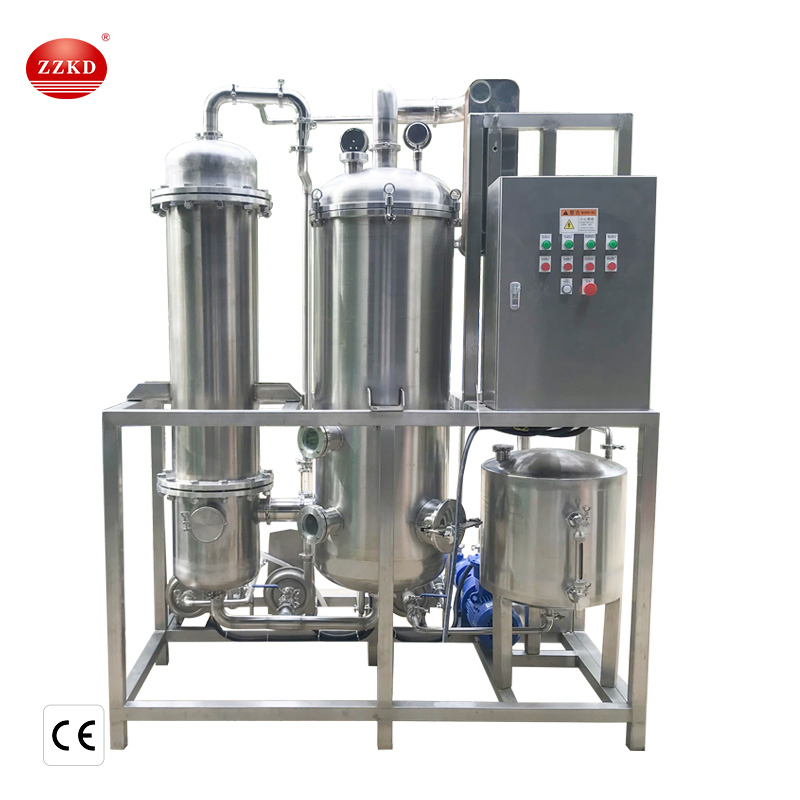

Falling Film Evaporator is ideal for botanical oil separation and ethanol alcohol recovery from your extracted biomass tincture. The system maintains a high evaporation rate, which significantly increases the throughput of crude oil production, eliminating the need for multiple large rotary evaporator systems.

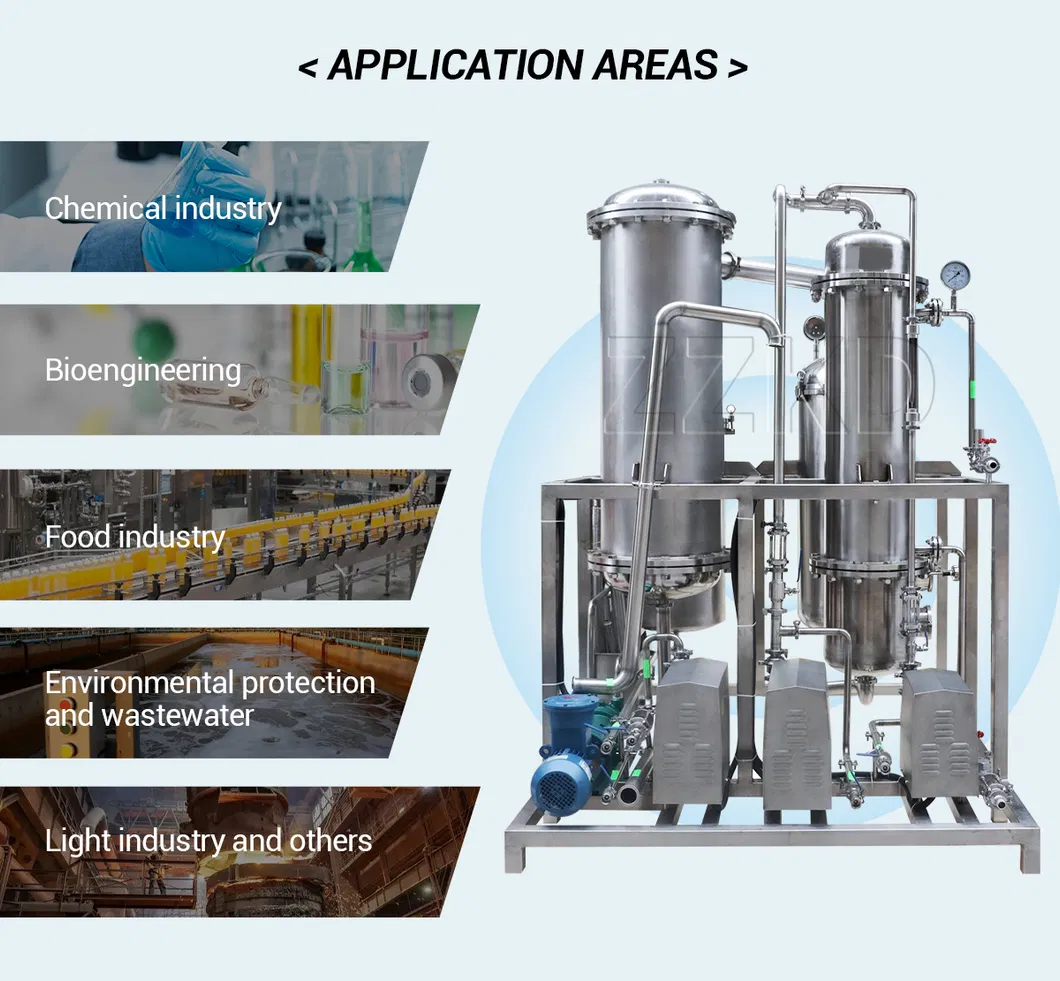

It is widely used in the concentration of chemical, ketchup, glucose, starch sugar, oligosaccharide, caramel, sorbitol, fresh milk, fruit juice, vitamin C, maltodextrin, pharmaceutical and other aqueous solutions. Besides, it is also widely used in the waste liquid treatment of monosodium glutamate, alcohol, fish powder and other fields.

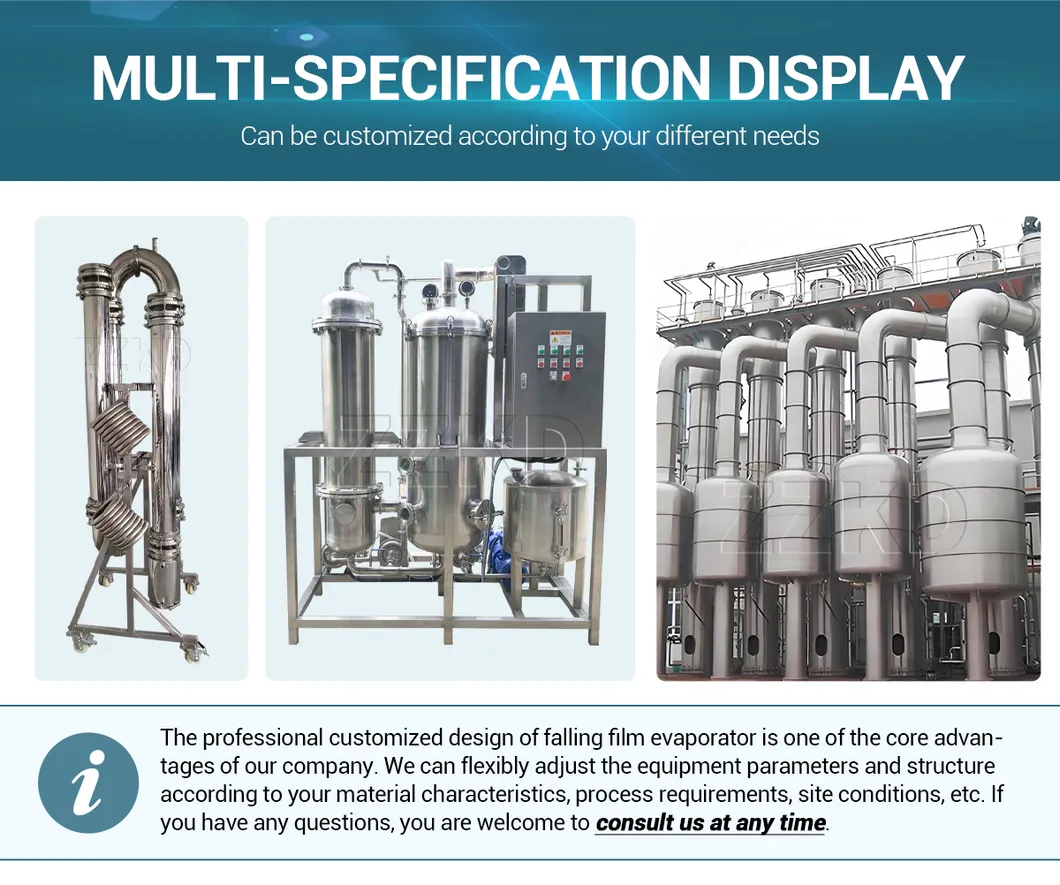

The equipment is continuously operated under vacuum and low temperature conditions, with high evaporation capacity, energy saving and consumption reduction, low operating cost, and it can maintain the original color, aroma, taste and ingredients of the processed materials to the maximum extent. It is widely used in many industries such as food, medicine, food deep processing, beverage, light industry, environmental protection, chemical industry and other fields. The evaporator can be designed into different process flow according to the characteristics of different materials to be processed, and can also be equipped with automatic control system according to your needs.

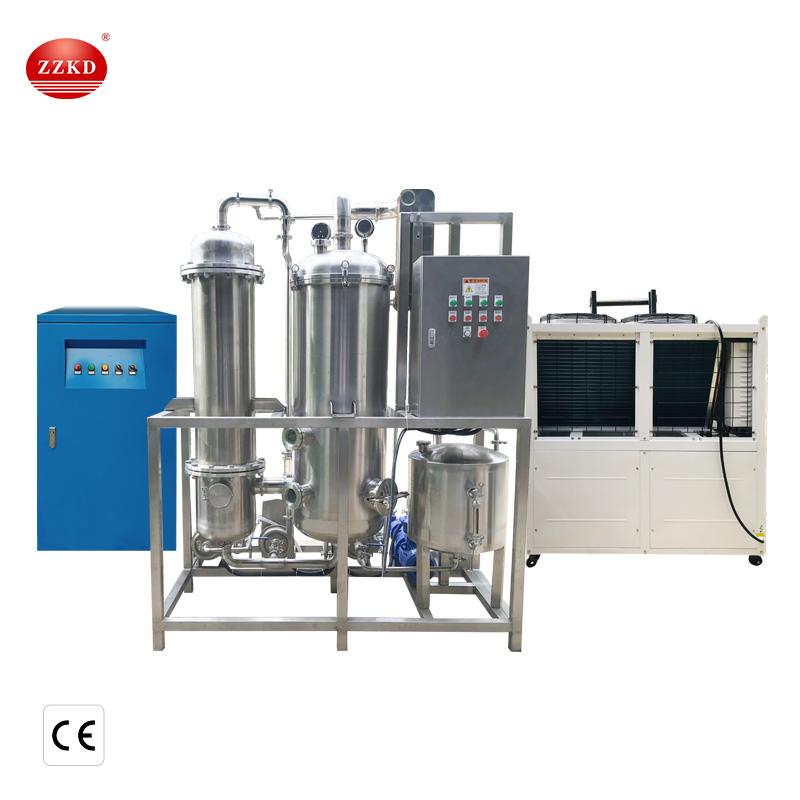

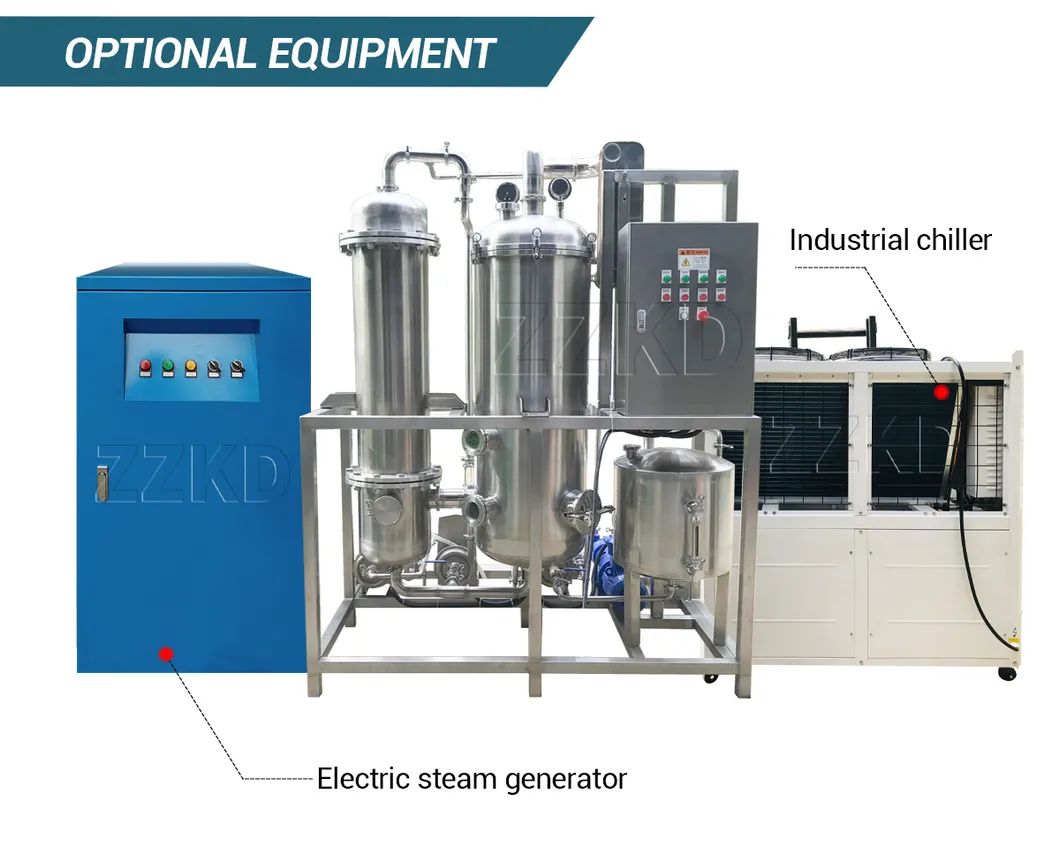

Increase processing capacity for high-quality output and efficiently recover alcohol with less time and labor. The FFE Series separates 90-95% of alcohol in one pass (depending on SOP). Heating and Cooling are integral to the process. With the right heaters and chillers we are able to manipulate the process to give our customers the recovery rates they need.

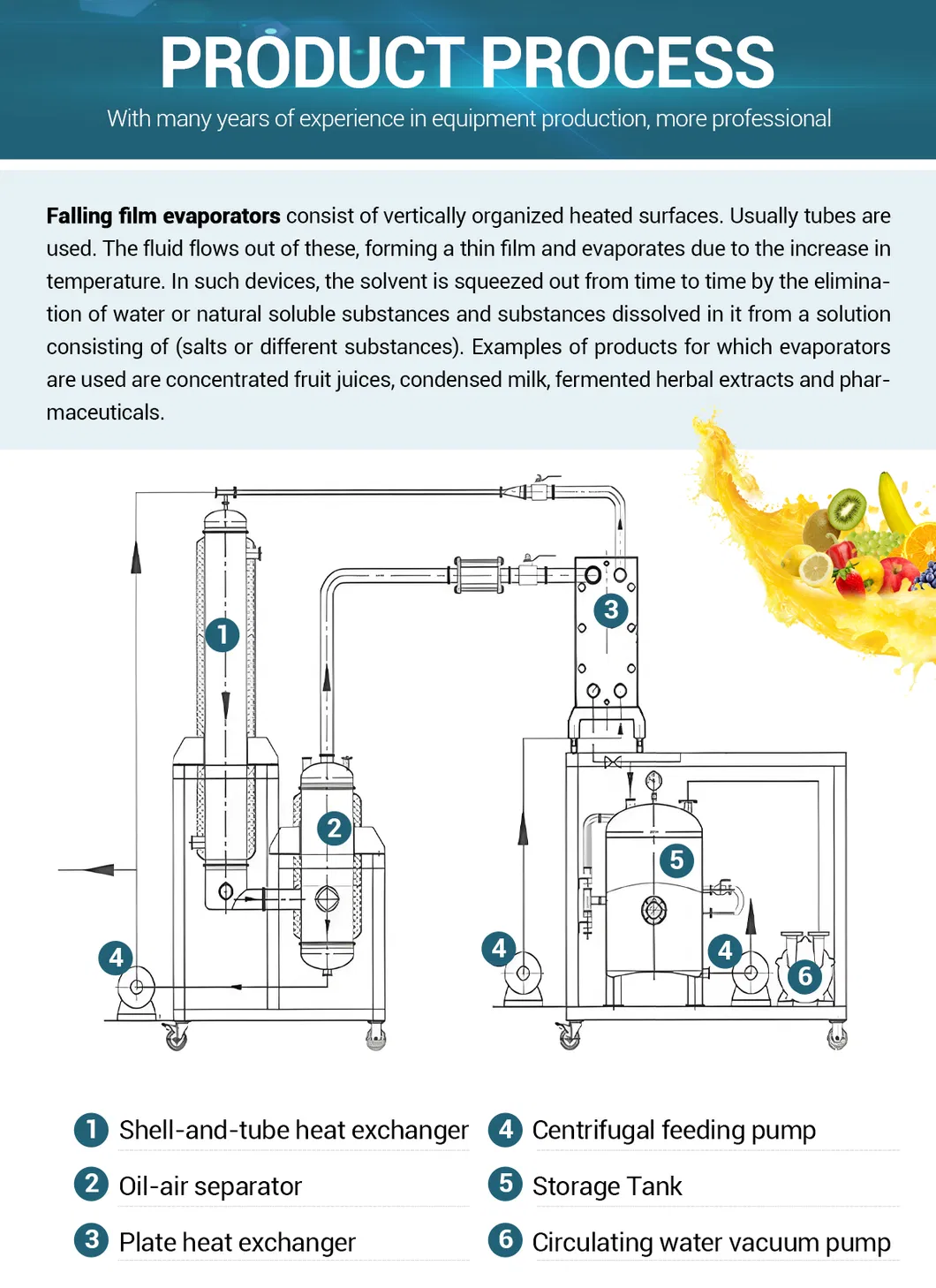

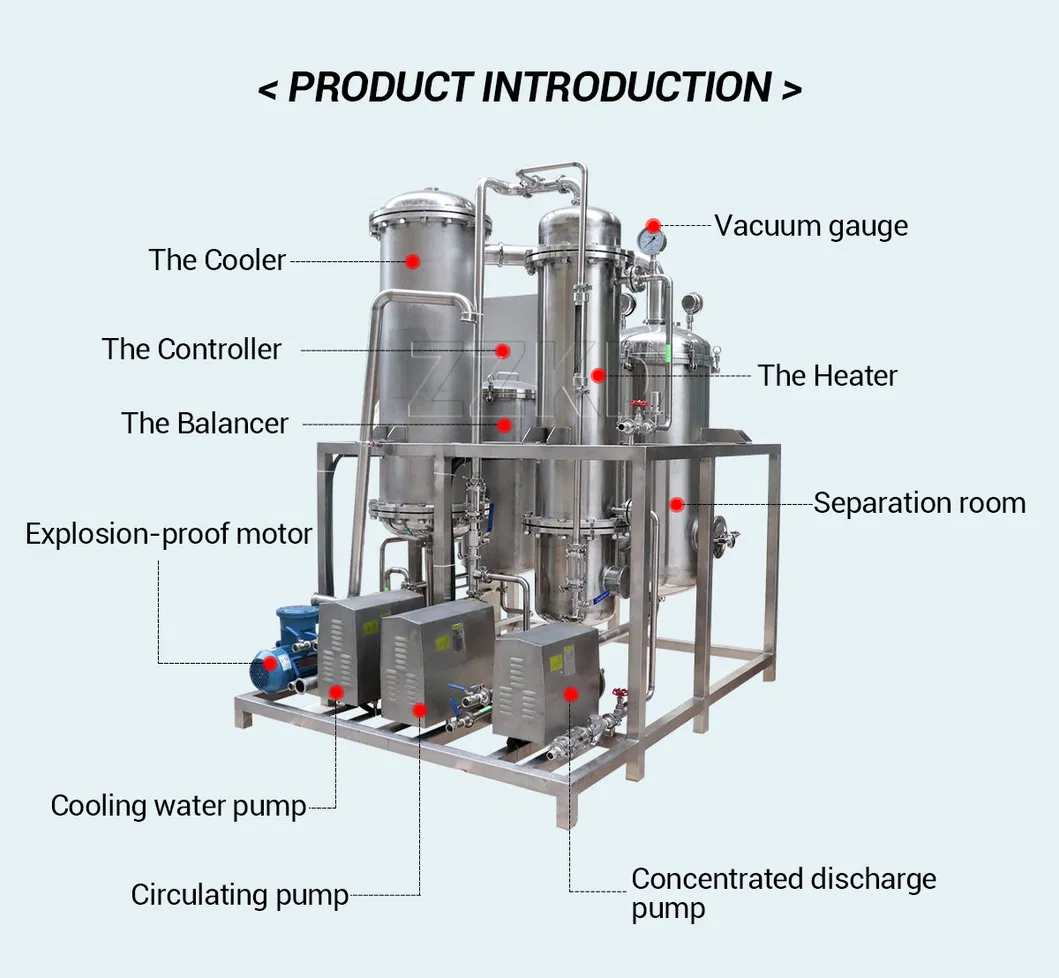

This equipment belongs to liquid film concentration equipment, which has high heat transfer rate and short heating time. It applies to chemical, liquid medicine, juice, and dairy production. The theory is that the feed liquid is added in the middle of the evaporation chamber. Under the action of vacuum and gravity, the accelerating pressure head of the liquid is smaller than that of the rising film type, and the boiling point is also smaller. The temperature difference between the electric heating and the feed liquid is large, so the heat transfer effect is better. The steam enters the evaporative separation chamber for separation. The secondary steam is discharged from the top of the chamber and the concentrate is extracted from the bottom.

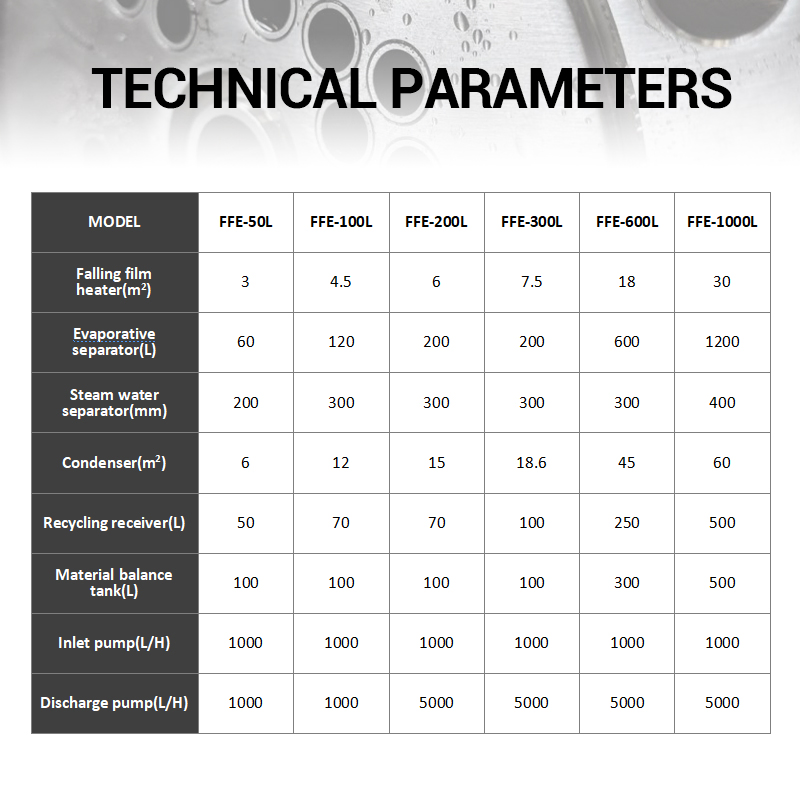

| MODEL | FFE-50L | FFE-100L | FFE-200L | FFE-300L | FFE-600L | FFE-1000L |
|---|---|---|---|---|---|---|
| Falling film heater (m²) | 3 | 4.5 | 6 | 7.5 | 18 | 30 |
| Evaporative separator (L) | 60 | 120 | 200 | 200 | 600 | 1200 |
| Steam water separator (mm) | 200 | 300 | 300 | 300 | 300 | 400 |
| Condenser (m²) | 6 | 12 | 15 | 18.6 | 45 | 60 |
| Recycling receiver (L) | 50 | 70 | 70 | 100 | 250 | 500 |
| Material balance tank (L) | 100 | 100 | 100 | 100 | 300 | 500 |
| Inlet pump (L/H) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Discharge pump (L/H) | 1000 | 1000 | 5000 | 5000 | 5000 | 5000 |
Packaging:
- Inner protective film with external strong standard wooden case packaging.
- Both neutral and customized packaging can be available.
Shipping:
- We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEx and so on. You can choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
| Shipping Method | Note |
|---|---|
| Express | Door to door, very convenient, doesn't require customs clearance or self-collection. |
| By Air | Airport to airport. You will need to handle customs clearance and collect the goods at your local airport, or coordinate with a local agent. |
| By Sea | Port to port. You will need to handle customs clearance and collect the goods at your local port, or coordinate with a local agent. |
