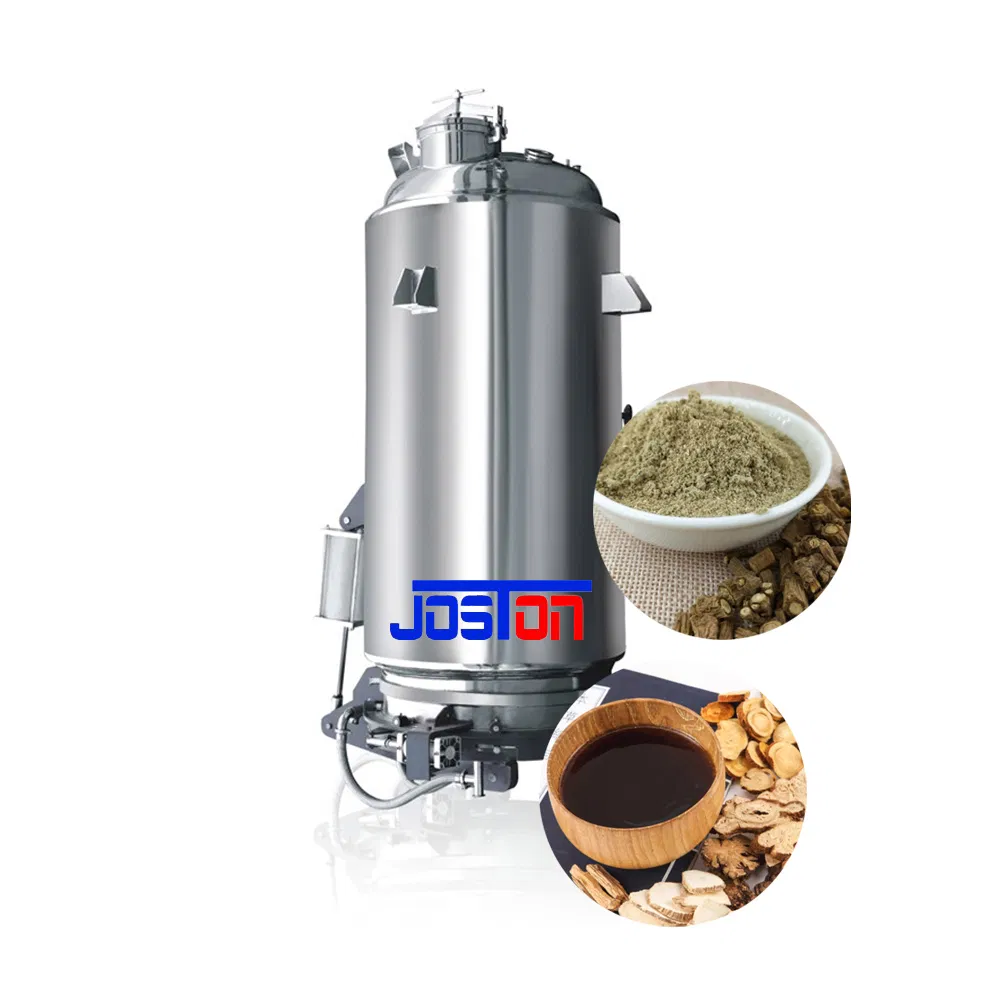

Customized Stainless Steel Multi-Functional Extraction Equipment Essential Oil Natural Pigment Coffee Extractor

1 / 5

Customized Stainless Steel Multi-Functional Extraction Equipment Essential Oil Natural Pigment Coffee Extractor

Customization:	Available
After-sales Service:	Engineers Available to Service Machinery Overseas, Online Support,video Technical Support
Application:	Chemical Industry, Cosmetic Industry, Essential Oil Industry, Food Safety, Herbal Industry, Nutraceutical Industry, Pharmaceutical Industry

Send Inquiry

Product Description

Basic Info.

Model NO. TQ

Capacity 100L-10000L

Certification CE, ISO

Condition New

Customized Customized

Extraction Method Steam Distillation

Material Stainless Steel

Pressure Control Customizable Pressure

Temperature Control Customizable Temperature

Warranty 1 year

Function Extracting Active Ingredients by Steam/Solvent/Water

Feeding Natural Plants, Seafood, Animal Bone etc.

Stainless Steel Material Stainless Steel 304/316L

Heating Model Steam/Hot Oil/Hot Water/Electrical

Applicable Industries Dairy, Food, Beverage, Cosmetic, etc.

Processing Low Temperature Extraction

Transport Package Seaworthy Package

Specification Customized

Production Capacity 30 Sets/Month

Product Description

The Multifunctional Extractor tank is designed to extract essential oils or active ingredients from various raw materials, such as herbal leaves, roots, stems, fruits, seeds, flowers, barks, seafood, animal bones, and viscera.

Raw Material Category	Compatible Raw Materials
Flowers	Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage; achillea millefolium; osmanthus; peony; marigold; laurel; honeysuckle; violets.
Leaves	Tea tree; eucalyptus; mint; patchouli; juniper berry; cypress; pine needles; spearmint; basil.
Roots	Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
Grasses	Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose.
Wood	Sandalwood; cedarwood; rosewood; Birch; holly; camphor; melaleuca; sassafras.
Resins	Frankincense; myrrh; benzoin; fir tree; amyris; Elemi.
Bark	Cinnamon.
Citrus	Bergamot; grapefruit; lemon; orange; lime; tangerine.

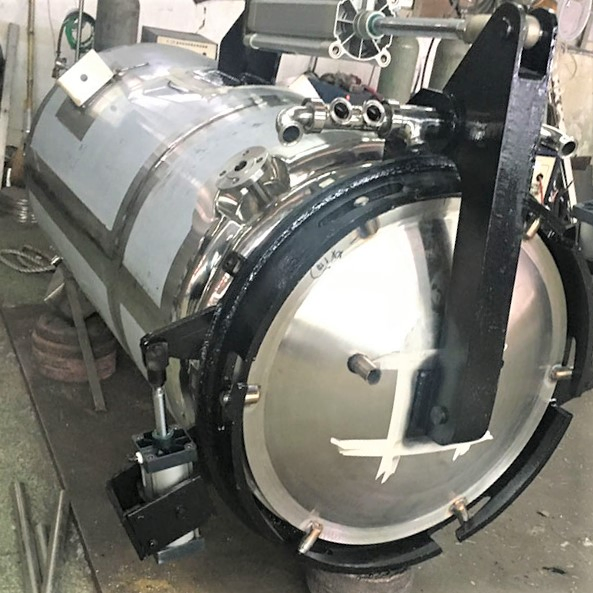

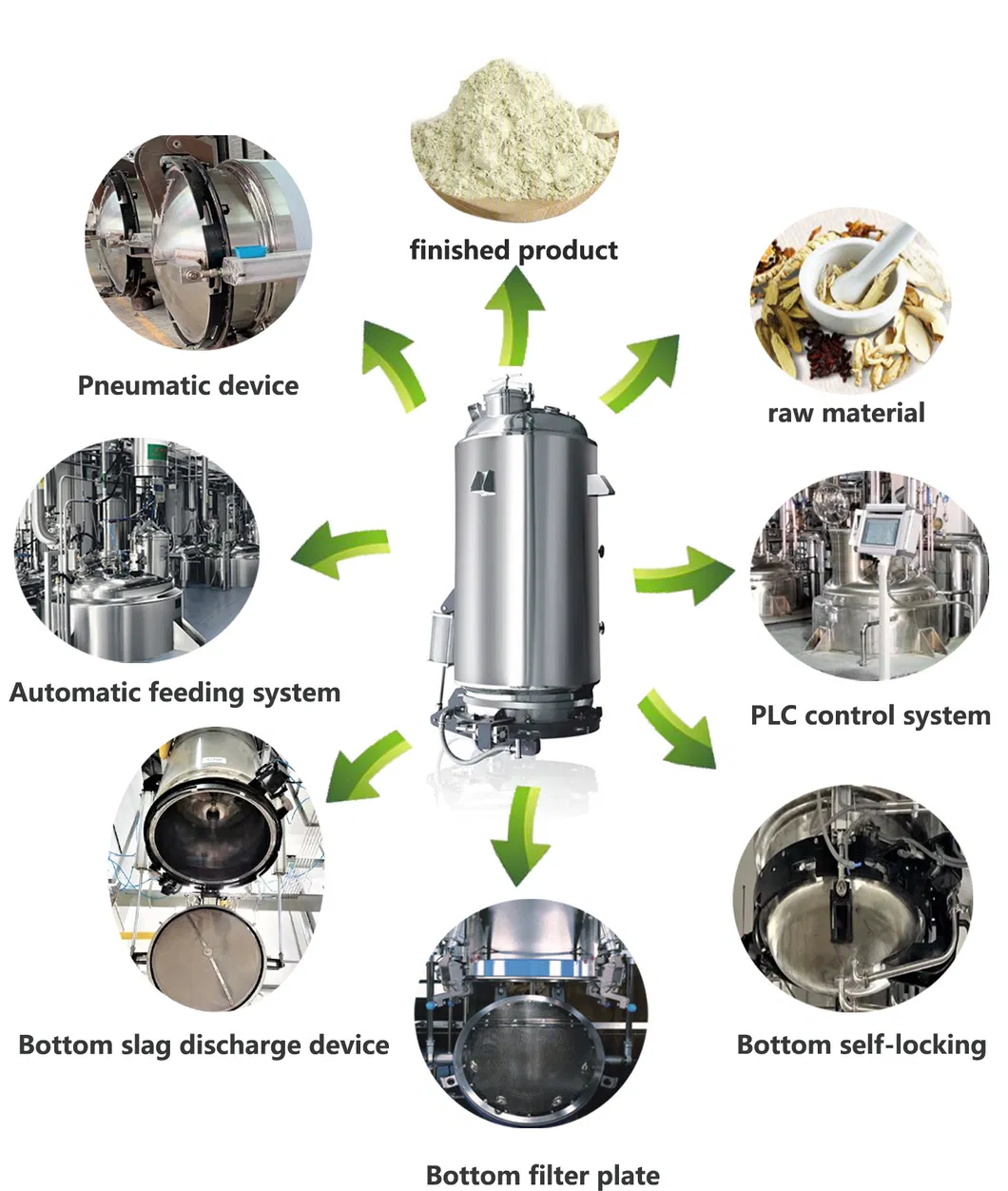

Stainless Steel Multi-Functional Extraction Equipment Essential Oil Natural Pigment Coffee Extractor

Working Principle

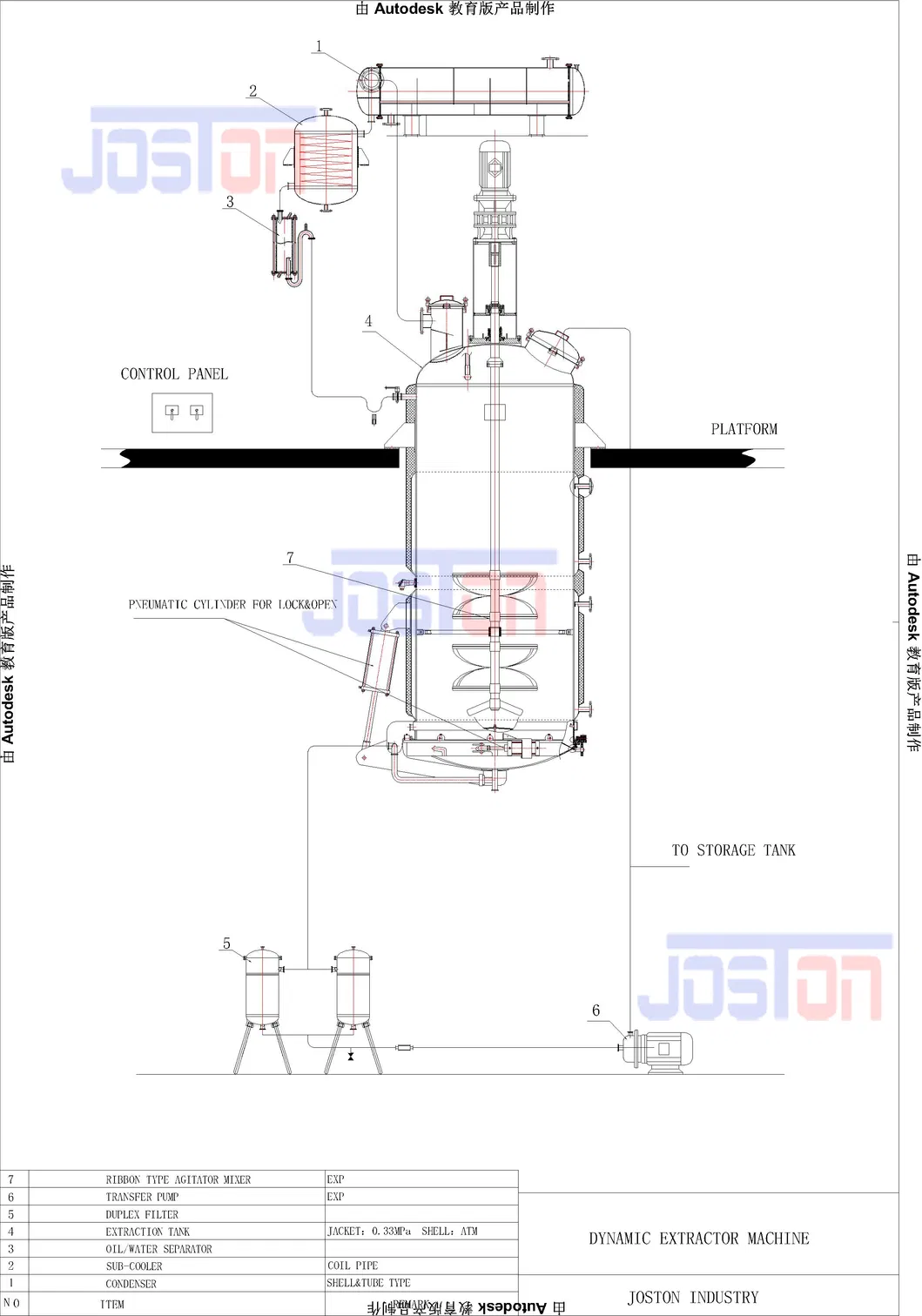

The multifunctional extractor machine operates through a simple decocting process and includes an extraction tank, condenser, sub-cooler, oil/water separator, filter, transfer pump, and pipeline system. These devices are fully constructed of stainless steel, conforming to FDA and GMP standards.

Raw herbal or natural materials are soaked in a solvent solution (e.g. water) and heated via steam or electricity. Effective ingredients are extracted over a designated period based on the material's properties. It is recommended that the feeding volume does not exceed two-thirds of the equipment's capacity.

For aromatic oil extraction, the vapor (steam mixed with oil) condenses, and the mixture flows to the oil-water separator. Light oil discharges at the top, heavy oil at the bottom, and water overflows or backs up to improve processing efficiency and avoid residue waste. If slag bridging occurs during discharge, an integrated lifting cylinder moves the lifting rod vertically to assist slag evacuation.

Technical Data

Model Item	TQ-500	TQ-1000	TQ-2000	TQ-3000	TQ-6000	TQ-10000
Total Volume (L)	570	1200	2300	3200	6300	11000
Work Volume (L)	500	1000	2000	3000	6000	10000
Design Pressure (Inside Shell, Mpa)	-0.1 / 0.09
Design Pressure (Jacket, Mpa)	0.33
Compressed Air Pressure (Mpa)	0.6 ~ 0.7
Charging Manhole Diameter (mm)	400	400	400	400	500	500
Condenser Cooling Area (m²)	3	4.5	5.5	6.5	9.5	15
Sub-cooler Cooling Area (m²)	0.5	0.5	1.0	1.2	2.0	3.0
Filter Area (m²)	0.2	0.2	0.25	0.25	0.3	0.5
Steam Consumption (kg/h @ 2bar)	180	250	300	350	650	850
Cooling Water Consumption (T/h)	4	5	7	8	12	20
Chiller Consumption (T/h @ 7°C - 12°C)	0.5	0.5	1.0	1.0	2.0	2.0
Stirring Speed (r/min) (Optional)	25 ~ 40

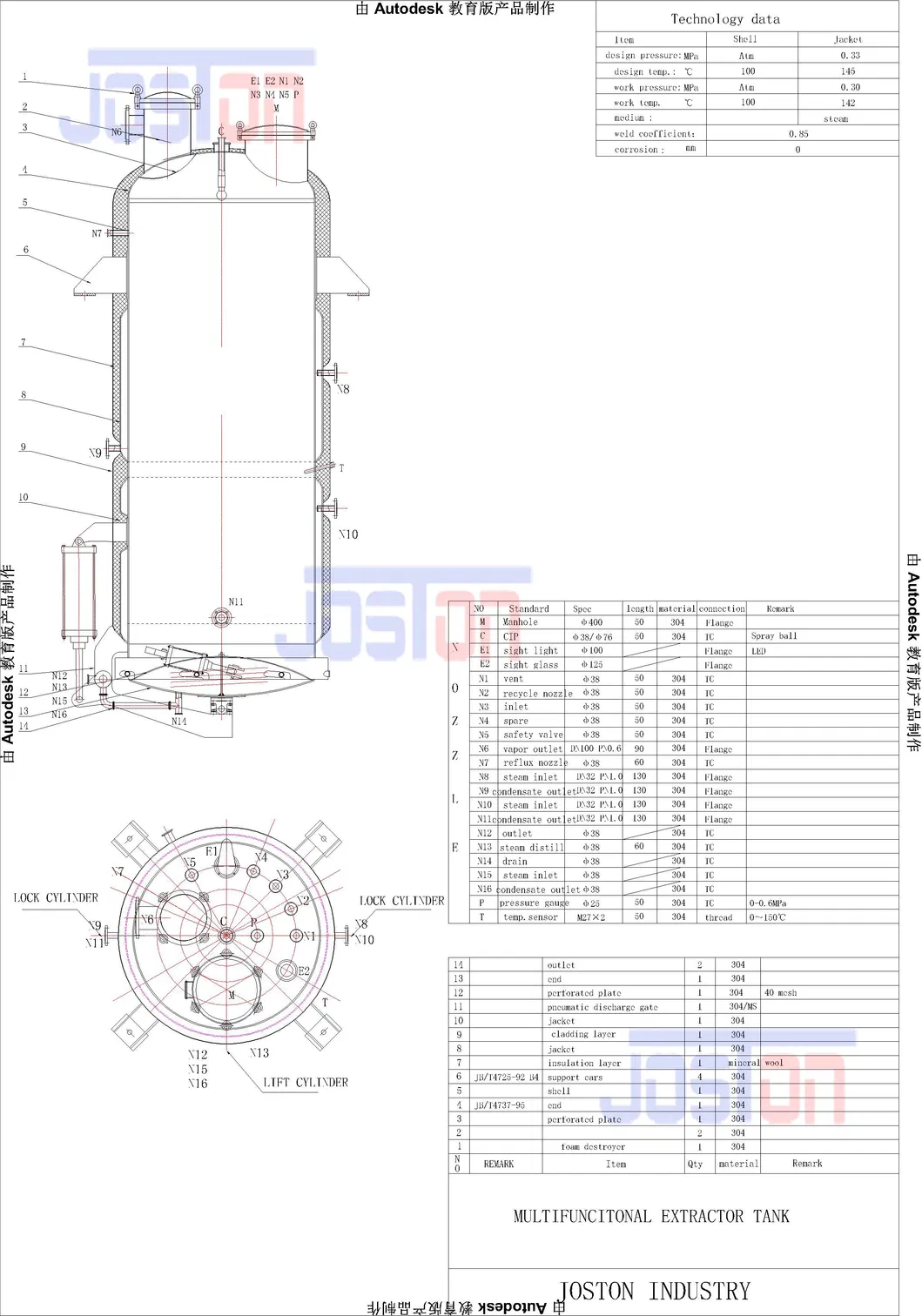

Multi-Functional Extraction Tank Dimension Drawing

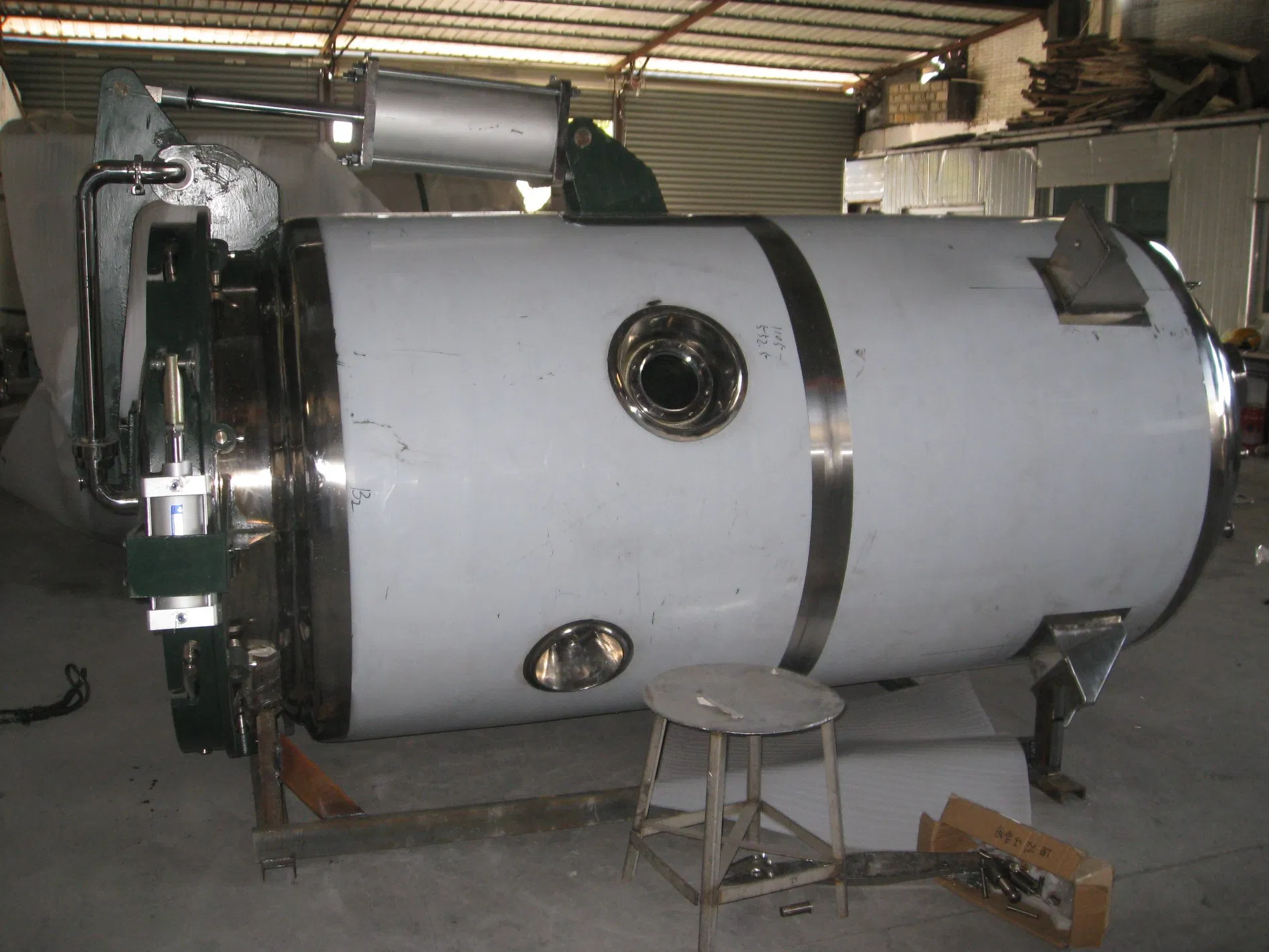

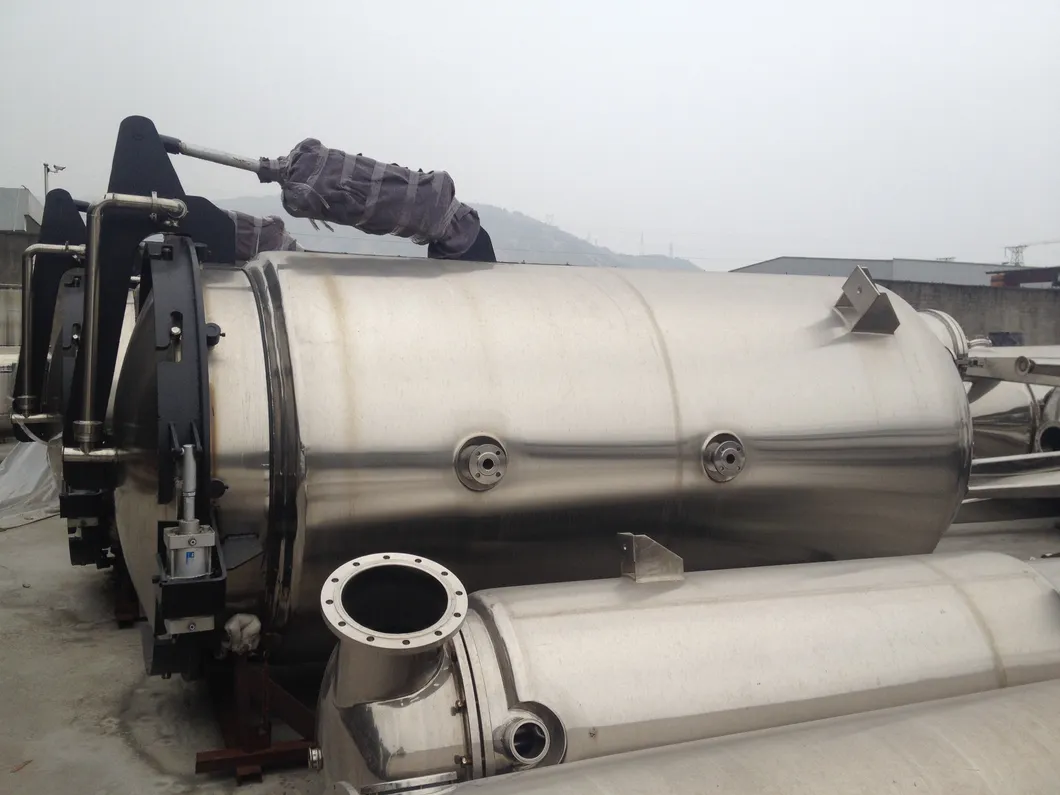

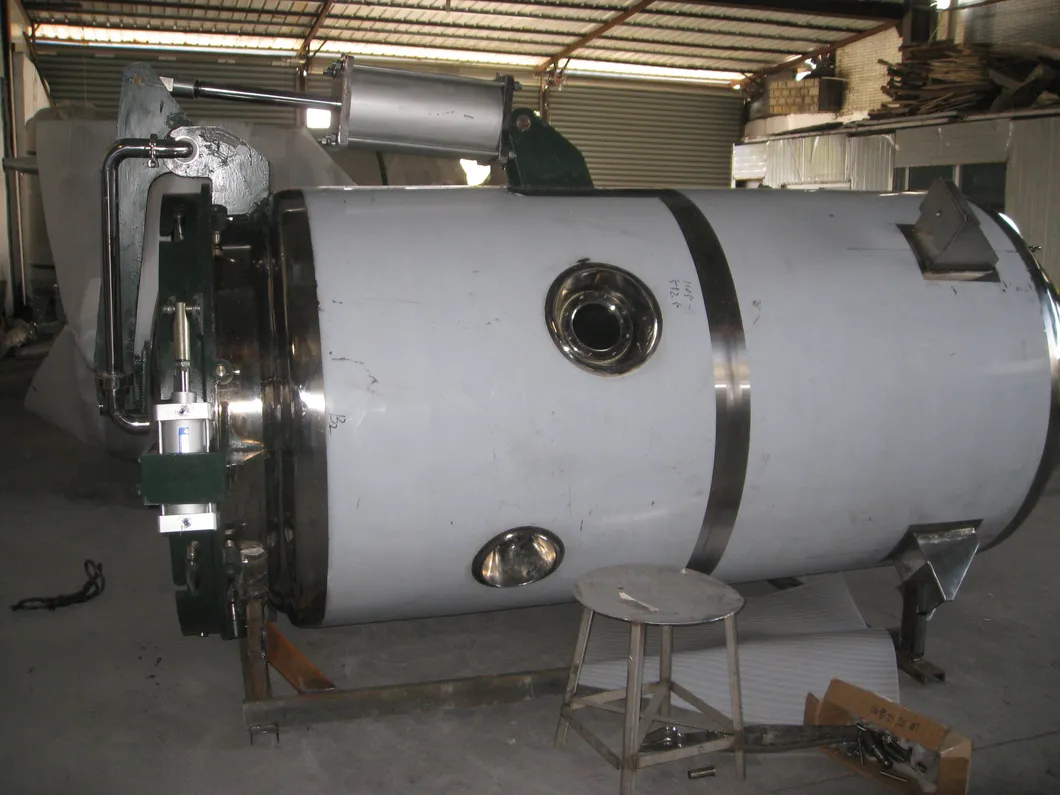

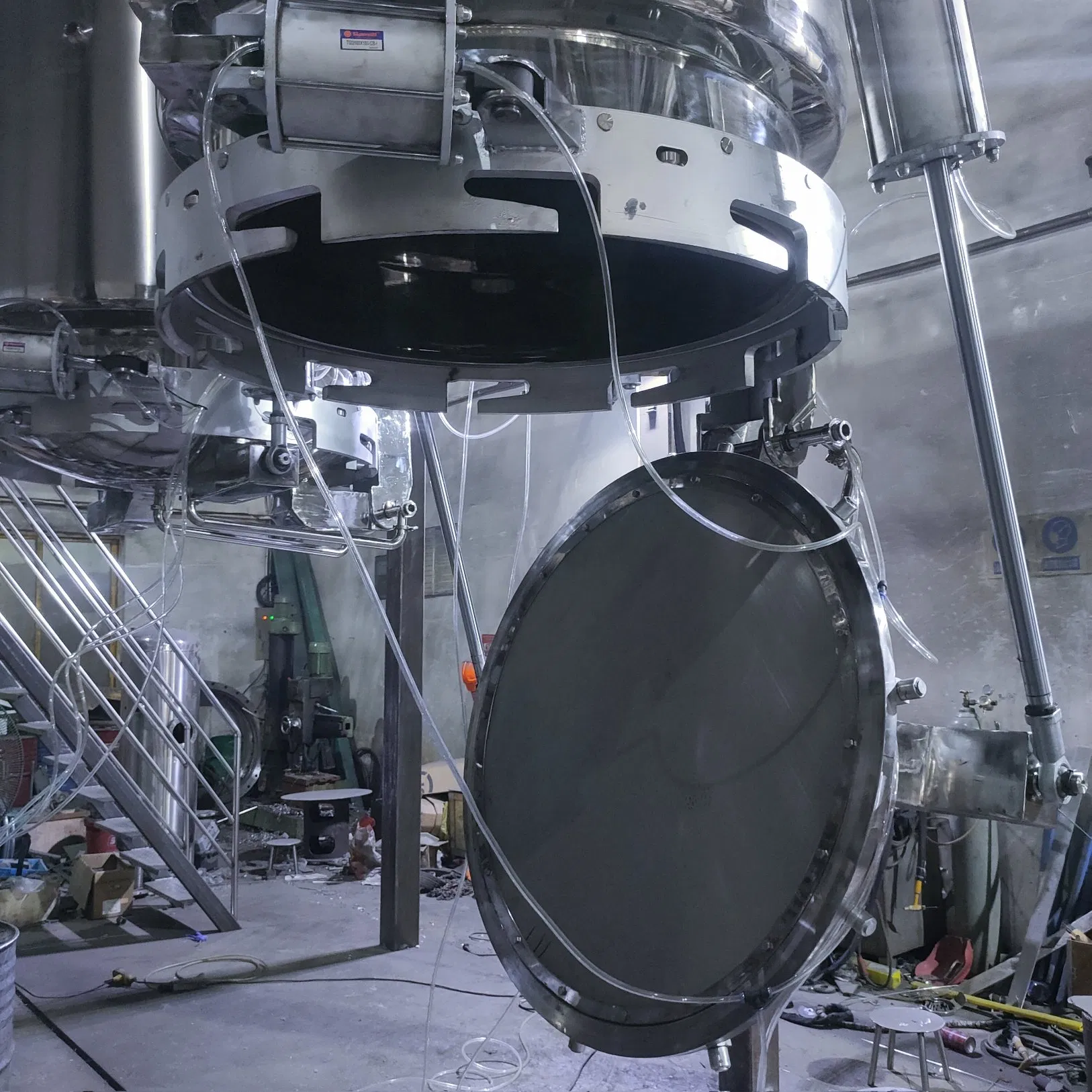

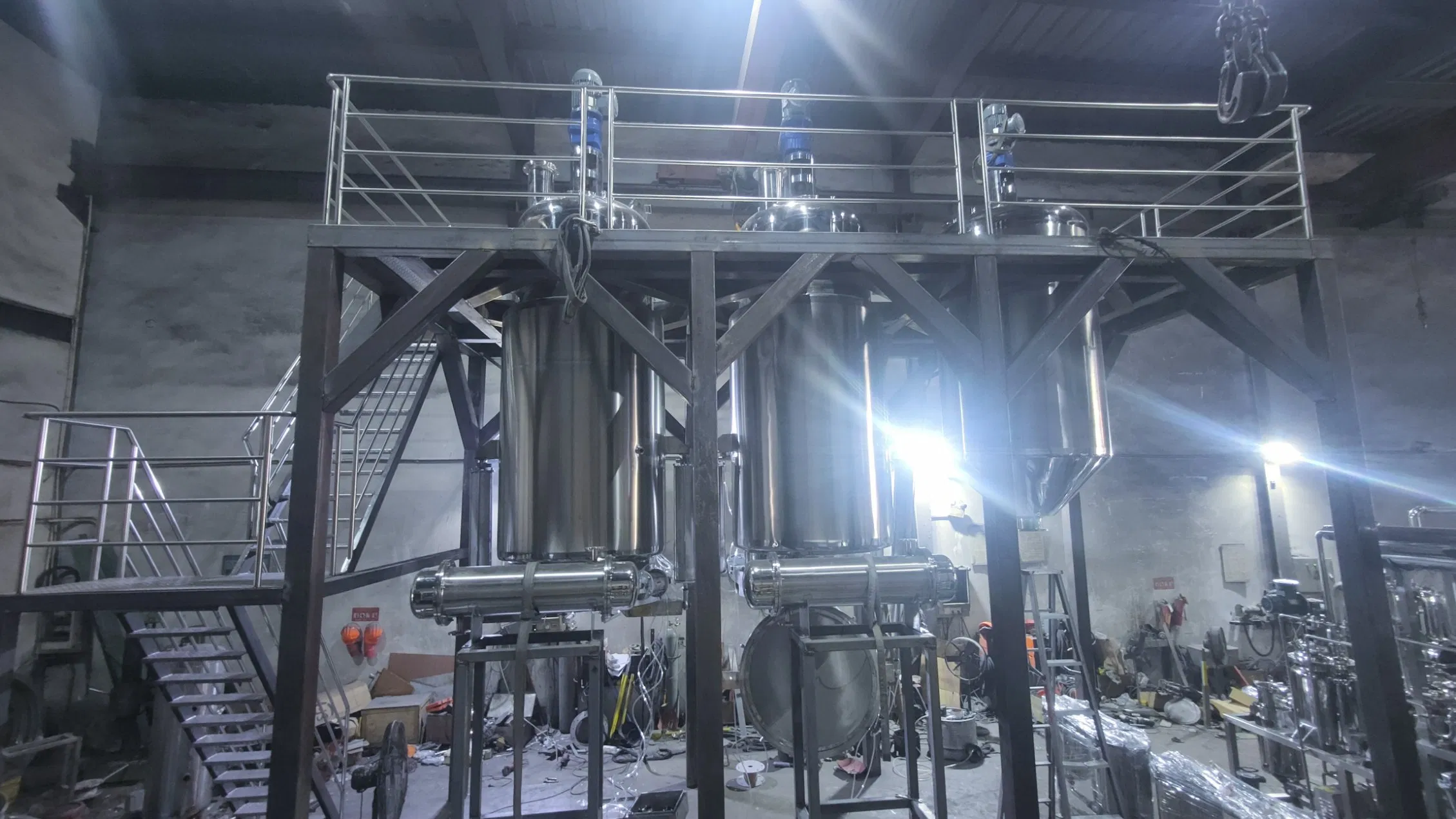

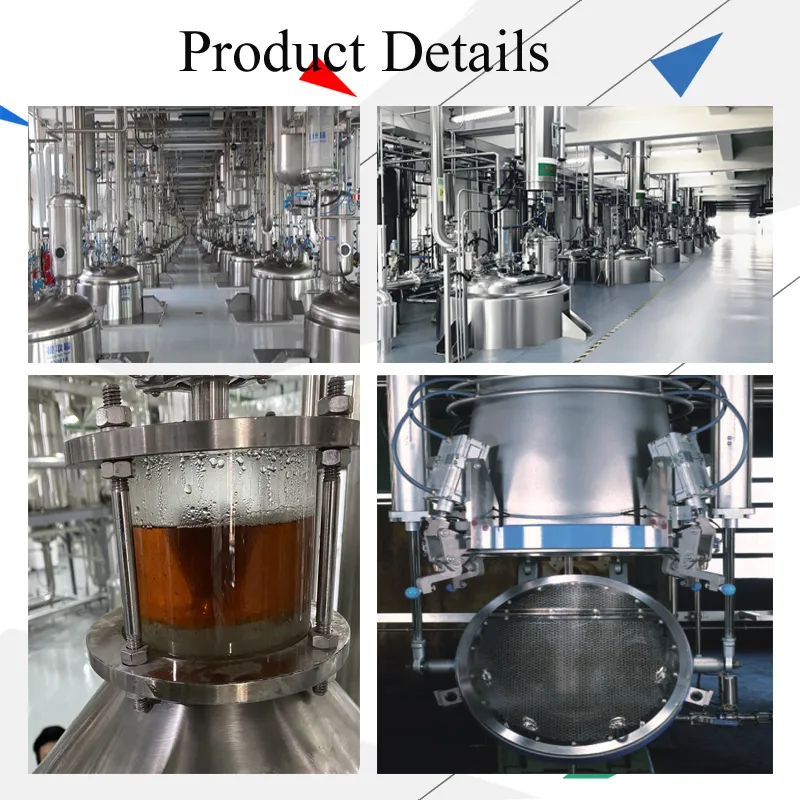

Detailed Photos
